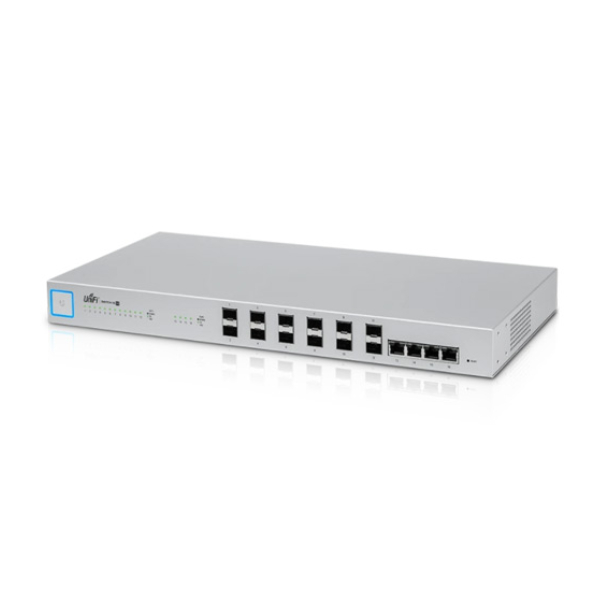

The UniFi Switch XG 16 is a high-performance, fully managed Layer 2 aggregation switch, ideal for core network deployments. It features 12 1/10 Gbps SFP+ ports and 4 1/10 Gbps RJ45 Ethernet ports, delivering up to 160 Gbps non-blocking throughput and 320 Gbps switching capacity.
Performance & Power
- Forwarding Rate: 238.10 Mpps
- Max DC Power Consumption: 36W (excludes SFP/SFP+ modules)
- Power Supply: AC/DC, Internal 56W DC
- Voltage Range: AC 100–240V, DC 57–20V
Management & Rack
- Management Interfaces: RJ45 Serial Port, Ethernet In-Band
- Rack-Mountable: 1U
Durability & Safety
- ESD/EMP Protection: Air ±24 kV, Contact ±24 kV
- Shock & Vibration: ETSI300-019-1.4 Standard
- LEDs: Speed/Link/Activity per port
Environmental
- Operating Temperature: -5 to 40°C (23 to 104°F)
- Operating Humidity: 5–95% Noncondensing
Certifications: CE, FCC, IC
