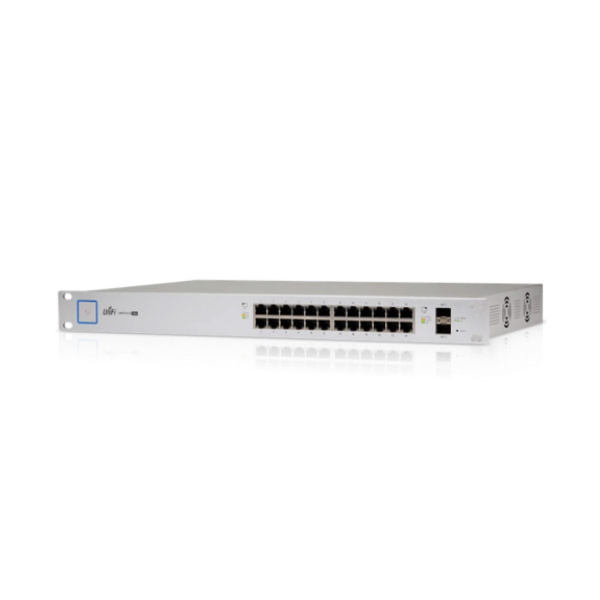

The UniFi Switch 24 250W is a fully managed PoE+ Gigabit switch designed for enterprise networks, providing reliable performance and intelligent switching. It offers 24 auto-sensing IEEE 802.3af/at or configurable 24V passive PoE ports, and two 1 Gbps SFP ports for uplink and fiber connectivity.
Networking Interfaces: (24) 10/100/1000 Mbps RJ45, (2) 1 Gbps SFP
Management Interface: RJ45 Serial Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput: 26 Gbps | Switching Capacity: 52 Gbps | Forwarding Rate: 38.69 Mpps
MAC Address Table: 16,384 | Maximum VLANs: 255 | Maximum Aggregations: 6 | Monitoring Sessions: 1
Power Method: 100–240 VAC, Universal Input | Power Supply: Internal AC/DC, 250W DC
PoE Interfaces: IEEE 802.3af/at PoE+ (Pins 1,2+; 3,6-) | 24V Passive PoE (Pins 4,5+; 7,8-)
Max PoE+ Wattage per Port: 34.2W | Max Passive PoE Wattage per Port: 17W
Operating Temperature: -5 to 40°C | Operating Humidity: 5–95% Noncondensing
ESD/EMP Protection: Air ±24 kV, Contact ±24 kV | Shock & Vibration: ETSI300-019-1.4 Standard
Certifications: CE, FCC, IC
This 1U rack-mount switch simplifies network expansion, delivering robust PoE power and high-speed fiber uplinks for enterprise deployments.
