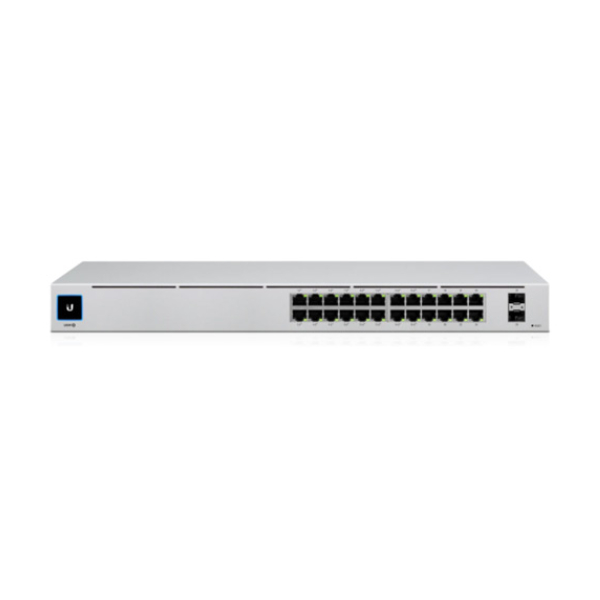

The USW-24-POE is a compact, fanless Gigabit Layer 2 switch that delivers robust PoE+ power and flexible uplink options for enterprise and SOHO deployments. It provides 24 Gigabit RJ45 ports (16 auto-sensing 802.3at PoE+), two 1G SFP uplinks, a 1.3″ touch LCM for status, and full management via the UniFi Network Controller and mobile app for remote configuration and monitoring.
Key Specifications
- Ports: 24 × 10/100/1000 RJ45 (including 16 × 802.3at PoE+), 2 × 1G SFP
- Throughput / Capacity: Total non-blocking throughput 26 Gbps; switching capacity 52 Gbps; forwarding rate 38.69 Mpps
- Power: Internal 120W AC/DC supply, 100–240 VAC input; max consumption (excluding PoE): 25W
- Management: Ethernet in-band; managed by UniFi Network Controller (mobile app supported)
- Design: Fanless, 7.9″ depth for easy SOHO rack installation; 1.3″ touch LCM for on-device status
- Reliability & Compliance: ESD/EMP protection (Air ±16 kV, Contact ±12 kV); Shock & Vibration: ETSI300-019-1.4; Operating temp: −5 to 40 °C; Humidity: 10–90% noncondensing; Certifications: CE, FCC, IC
Ideal for deployments that need substantial PoE budget, intuitive management, and quiet, rack-friendly hardware.
