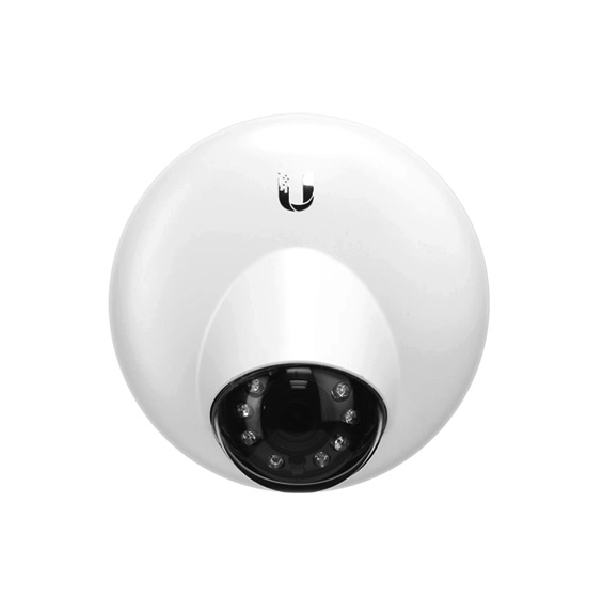

The UniFi G3 Dome provides wide-angle 1080p Full HD video for comprehensive surveillance coverage. Its surface-mount design allows flexible wall or ceiling installation, while infrared LEDs with an automatic IR cut filter ensure clear day and night monitoring. A built-in microphone captures audio.
Technical Specifications
- Enclosure: None
- Networking: (1) 10/100 Ethernet Port
- Sensor: 1/3″ 4-Megapixel HDR
- Lens: EFL 2.8 mm, F2.0
- Night Mode: IR LEDs with mechanical IR cut filter
- Power: 802.3af PoE or 24V Passive PoE (adapter included in single-pack)
- Power Consumption: 4W
- Mounting: Wall/Ceiling
- Operating Temp: -30 to 70°C (-22 to 158°F)
- Operating Humidity: 20–90% noncondensing
Video Features
- Compression: H.264
- Resolution: 1080p Full HD (1920×1080)
- Frame Rate: Up to 30 FPS
- Image Settings: Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz
Hardware
- Processor: Ambarella S2L
- Memory: 512 MB DDR3L
- View Angle:
- Before Lens Correction: 100.4° H, 59.1° V, 117.3° D
- After Lens Correction: 87.8° H, 55.4° V, 96.4° D
