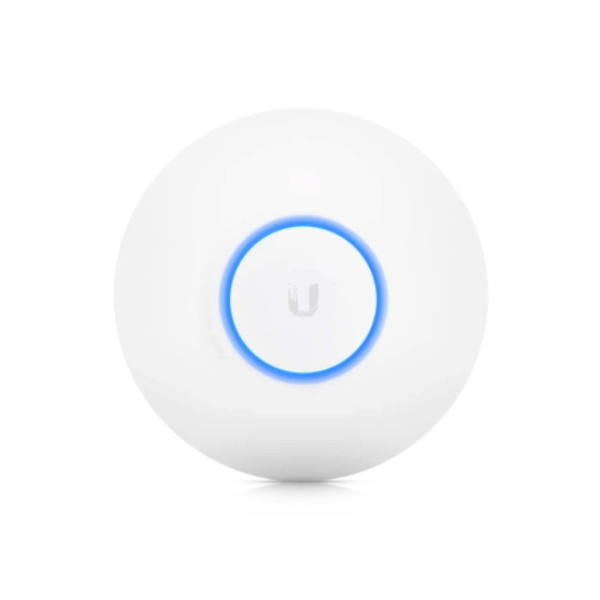

Extend your Wi-Fi network with the UniFi ac LR Access Point — a long-range, indoor 802.11ac dual-radio AP designed for extended coverage and reliable performance. It delivers up to 1317 Mbps aggregate throughput and a range up to 183 m (600 ft), making it ideal for large indoor spaces.
Mechanical & Networking
- Dimensions: 175.7 × 175.7 × 43.2 mm (6.92 × 6.92 × 1.70″)
- Weight: 240 g (8.5 oz); 315 g (11.1 oz) with mounting kits
- Networking Interface: (1) 10/100/1000 Ethernet RJ45
- Buttons: Reset
Power & Consumption
- Power Method: 802.3af/A PoE or 24V passive PoE (pairs 4,5+; 7,8 return)
- Power Supply: 24V, 0.5A Gigabit PoE adapter (included/sold separately)
- Max Power Consumption: 6.5 W
- Power Save: Supported
Radio & Antenna
- Max TX Power: 2.4 GHz — 24 dBm; 5 GHz — 22 dBm
- Antennas: (1) Dual-band, tri-polarity antenna — 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
- Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac
- BSSID: Up to 8 per radio
Performance & Security
- Speeds: Up to 1317 Mbps aggregate; long-range coverage to 183 m
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Installation & Environment
- Mounting: Wall or ceiling (kits included)
- Operating Temperature: −10 to 70 °C (14 to 158 °F)
- Operating Humidity: 5–95% non-condensing
- Certifications: CE, FCC, IC
