Dimensions: 160 × 160 × 31.45 mm (6.30 × 6.30 × 1.24″)
Weight: 170 g (6.0 oz), 185 g (6.5 oz) with mounting kits
Networking Interface: (1) 10/100/1000 Ethernet port
Ports: None
Buttons: Reset
Antennas: (2) dual-band, 3 dBi each
Wi-Fi Standards: 802.11a/b/g/n/ac
Power Method: Passive PoE 24V (Pairs 4, 5+; 7, 8 return)
Power Supply: 24V, 0.5A Gigabit PoE adapter
Max Power Consumption: 6.5W
Max TX Power: 20 dBm
BSSID: Up to 4 per radio
Power Save: Supported
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications: CE, FCC, IC
Mounting: Wall/ceiling (kits included)
Operating Temp: -10 to 70 °C (14 to 158 °F)
Operating Humidity: 5–95% non-condensing

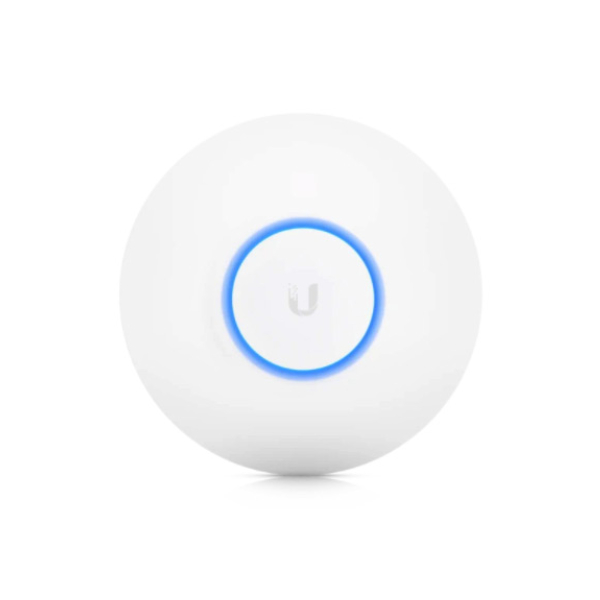

Ubiquiti UniFi Lite Access Point
The UniFi AC Lite Access Point, part of Ubiquiti’s UniFi Enterprise Wi-Fi System, is a compact indoor dual-radio 802.11ac AP delivering speeds up to 1167 Mbps and coverage up to 122 m. It supports VLAN 802.1Q, advanced QoS with per-user rate limiting, guest traffic isolation, WMM, and over 200 concurrent client connections.
