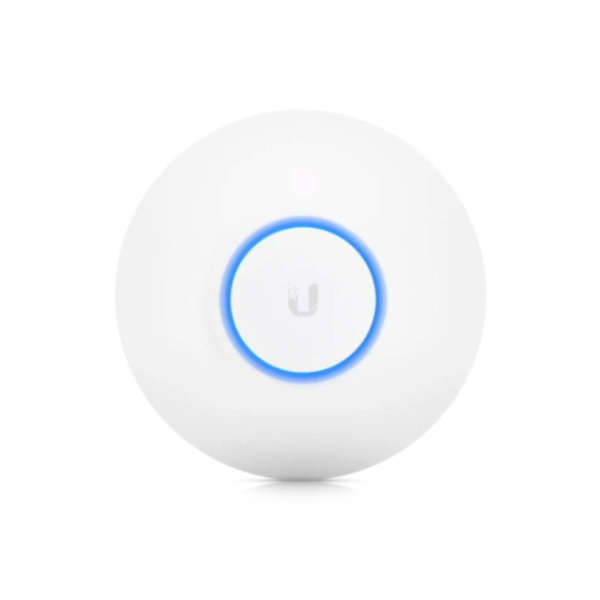

Compact, high-performance access point designed for flexible wall or ceiling installation. It delivers dual-band 802.11a/b/g/n/ac Wave 2 connectivity with internal dual-polarity antennas and PoE power for easy deployment. Robust construction supports wide temperature and humidity ranges, while advanced security and multiple interfaces provide reliable enterprise-class wireless performance.
Key Specifications
- Dimensions: 220 × 220 × 48.1 mm
- Weight: With mounting kits: 700 g (24.7 oz) or 830 g (29.3 oz)
- Networking Interfaces: (2) 10/100/1000 Mbps Ethernet ports
- Other Ports: (1) USB Type-C, Reset button
- Antennas: (2) 2.4 GHz internal, dual-polarity; (2) 5 GHz internal, dual-polarity
- Wi-Fi Standards: 802.11a/b/g/n/ac/ac-wave2
- Power: PoE 802.3at (PoE injector: 48 VDC, 0.5 A Gigabit)
- Max Power Consumption: 17 W
- Max TX Power: 25 dBm
- BSSID: 4 per radio
- Power Save: Supported
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Certifications: CE, FCC, IC
- Mounting: Wall/ceiling (kits included)
- Operating Temp: −10 to 70 °C (14 to 158 °F)
- Operating Humidity: 5–95% non-condensing
