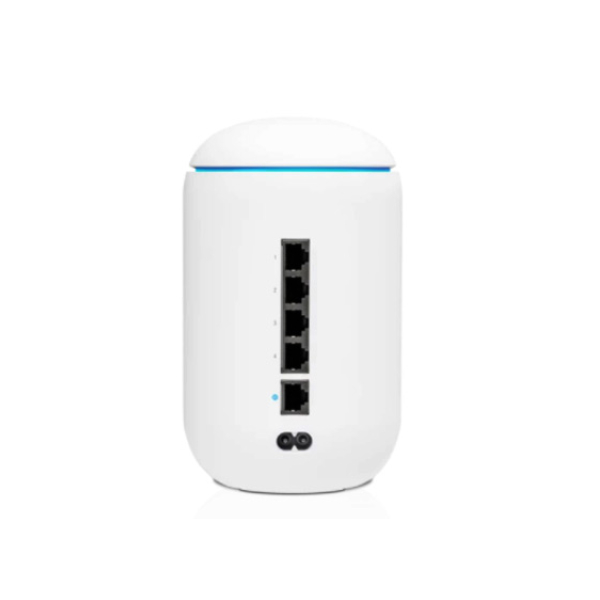

The UniFi Dream Machine (UDM) integrates multiple enterprise-grade features into a compact design, ideal for high-density environments.
It includes a 4×4 MU-MIMO Wave 2 AP for high-performance Wi-Fi, an advanced security gateway with IPS/IDS, and a UniFi Network Controller for centralized device management and traffic control. A managed 4-port Gigabit switch allows easy expansion for wired devices or storage.
Powered by a 1.7 GHz ARM Cortex-A57 quad-core processor with 2 GB RAM and 16 GB storage, it delivers 850 Mbps IDS/IPS throughput. It supports VLANs, VPN server functionality, enterprise VoIP QoS, beamforming, and multiple wireless security standards.
Specifications:
- Networking: 4× LAN GbE, 1× WAN GbE
- Wi-Fi: 802.11a/b/g/n/ac/ac-Wave 2
- Antenna: Dual-band, quad-polarity
- Power: 100–240 VAC, 26 W max, internal adapter
- Dimensions: Ø 110 × 184.2 mm, 1.05 kg
- Environment: –10 to 45 °C, 5–95% RH
- Certifications: CE, FCC, IC
