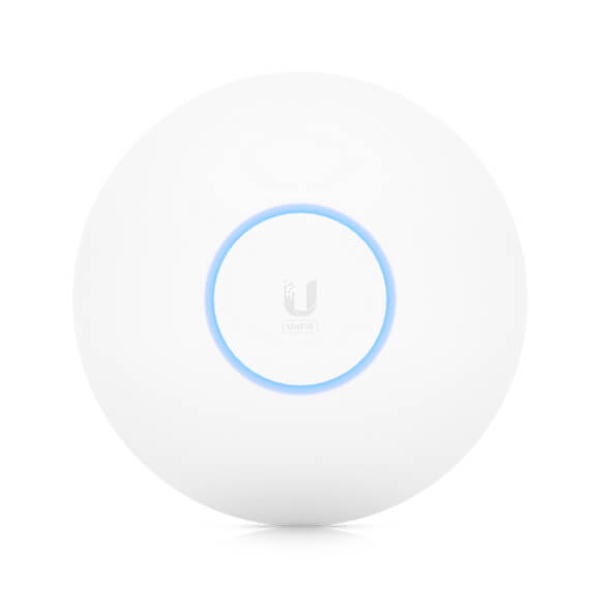

The U6 Pro is a high-performance dual-band WiFi 6 access point designed for both home and office environments. Delivering an aggregate throughput of up to 5.3 Gbps, it operates with a 5 GHz (4×4 MIMO) band at 4.8 Gbps and a 2.4 GHz (2×2 MIMO) band at 573.5 Mbps, supporting 300+ concurrent clients while ensuring consistent, reliable connectivity. It supports full 4×4 MIMO with 160 MHz channels for high-capacity wireless uplinks and faster data transfers, along with guest traffic isolation for enhanced security.
Mechanical
- Dimensions: Ø197 × 35 mm (Ø7.76 × 1.38″)
- Weight: 460 g (1.01 lb) without mount; 600 g (1.32 lb) with mount
- Enclosure Material: Plastic
- Mounting Material: SGCC steel
- Weatherproofing: IP54
Hardware
- Interfaces: Ethernet, Bluetooth (management)
- Networking: 1× GbE RJ45 port
- Button: Factory reset
- LEDs: White/Blue
- Power Method: 802.3at PoE+
- Power Supply: UniFi PoE switch or 48V, 0.5A PoE adapter (not included)
- Voltage Range: 44–57VDC
- Max. Power Consumption: 13W
- Max. TX Power: 2.4 GHz – 22 dBm, 5 GHz – 26 dBm
- MIMO: 2×2 UL MU-MIMO (2.4 GHz), 4×4 DL/UL MU-MIMO (5 GHz)
- Antenna Gain: 2.4 GHz – 4 dBi, 5 GHz – 6 dBi
- Mounting: Wall/Ceiling (kit included)
- Operating Temp: -30°C to 60°C (-22°F to 140°F)
- Humidity: 5–95% noncondensing
- Certifications: CE, FCC, IC
Software
- WiFi Standards: 802.11a/b/g, WiFi 4, WiFi 5, WiFi 6
- Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN Support: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest Traffic Isolation: Supported
- Concurrent Clients: 300+
Supported Data Rates
- 802.11a: 6–54 Mbps
- 802.11b: 1–11 Mbps
- 802.11g: 6–54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps–600 Mbps (MCS0–MCS31, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps–3.4 Gbps (MCS0–MCS9 NSS1–4, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps–4.8 Gbps (MCS0–MCS11 NSS1–4, HE 20/40/80/160)
