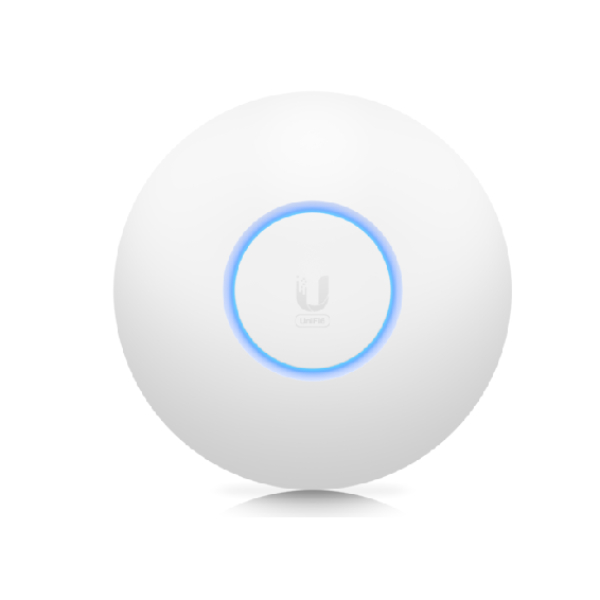

The UniFi 6 Lite is a compact, dual-band Wi-Fi 6 access point with 2×2 MIMO, designed for versatile, low-profile mounting. It delivers up to 1.5 Gbps aggregate throughput with 5 GHz MU-MIMO and OFDMA (1201 Mbps) and 2.4 GHz MIMO (300 Mbps). Its nano-sized form factor supports nanoHD covers and accessories, making it ideal for high-density environments when ceiling-mounted, or extended coverage when wall-mounted.
Technical Specifications
Mechanical
- Dimensions: Ø160 × 32.65 mm (Ø6.3 × 1.3″)
- Weight: 300 g (10.6 oz) without mount; 315 g (11.1 oz) with mount
- Enclosure: Polycarbonate 110 & ADC12 die-cast aluminum
- Mounting Hardware: Polycarbonate & SGCC steel
Hardware
- Processor: 880 MHz MIPS 1004 KEc
- Memory: 256 MB
- Interface: (1) 10/100/1000 Mbps RJ45 Ethernet (in-band management)
- Buttons: Factory reset
- LED Indicators: White/Blue
- Power Method: 802.3af PoE or Passive PoE (48 V)
- Power Supply: 802.3af PoE; 48 V 0.32 A adapter (sold separately)
- Voltage Range: 44–57 VDC
- Max Power Consumption: 12 W
Radio & Performance
- Max TX Power: 23 dBm (2.4 GHz & 5 GHz)
- MIMO: 2×2 (both bands)
- Throughput: 300 Mbps @ 2.4 GHz; 1201 Mbps @ 5 GHz
- Antenna Gain: 2.8 dBi (2.4 GHz), 3 dBi (5 GHz)
Environmental
- Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Operating Humidity: 5–95% non-condensing
- Certifications: CE, FCC, IC
Software & Networking
- Wi-Fi Standards: 802.11a/b/g, Wi-Fi 4/5/6
- Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
- BSSID: Up to 8 per radio
- VLAN Support: 802.1Q
- QoS: Per-user rate limiting
- Guest Traffic Isolation: Supported
- Concurrent Clients: 300+
Supported Data Rates
- 802.11a/g: 6–54 Mbps
- 802.11b: 1–11 Mbps
- 802.11n: 6.5–300 Mbps (HT 20/40)
- 802.11ac: 6.5–866.7 Mbps (VHT 20/40/80)
- 802.11ax: 6.3 Mbps–1.2 Gbps (HE 20/40/80)
