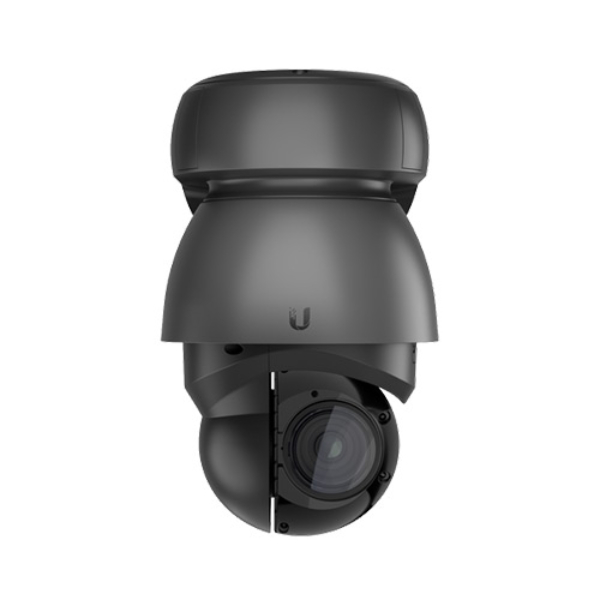

The UniFi Protect G4 PTZ is a high-performance pan-tilt-zoom surveillance camera delivering 4K (3840×2160) video at 24 FPS, 22× optical zoom, and adaptive IR LED night vision. Designed for demanding environments such as shopping malls, parking lots, airports, train stations, and transportation hubs, it combines advanced optical/video technology with the simplicity of UniFi Protect. The camera features an IP66 weatherproof housing and flexible PoE++ power options for reliable outdoor use.
Key Specifications
Mechanical
- Dimensions: 207 × 223.7 × 341.3 mm (8.15 × 8.81 × 13.44″)
- Weight: 3.8 kg (8.38 lb) without mount; 6.8 kg (14.99 lb) with mount
- Materials: Metal and plastic enclosure; metal mount
- Weather Rating: IP66
Optics
- Sensor: Sony 4K (8 MP) 1/1.8″ CMOS
- Lens: 22× optical zoom
- Field of View: H: 3–64°, V: 2–37°
- Night Mode: Built-in IR LED illumination with IR cut filter
Video
- Compression: H.264
- Resolution: 4K2K (3840 × 2160)
- Max Frame Rate: 24 FPS
System
- Processor: Ambarella S5L66
- Memory: 1 GB RAM, 256 MB flash
- Network: RJ45 10/100/1000 Mbps Gigabit Ethernet
- Power: 802.3bt PoE++, max consumption 42.9 W
- Mounting: Wall mount (kit included)
- Operating Temp: −40 to 50ºC (−40 to 122ºF)
- Humidity: 0–90% non-condensing
- Certifications: FCC, IC, CE
Software
- Platform: UniFi Protect (UniFi OS application)
- Mobile Apps: UniFi Protect for iOS and Android
