airMAX Technology

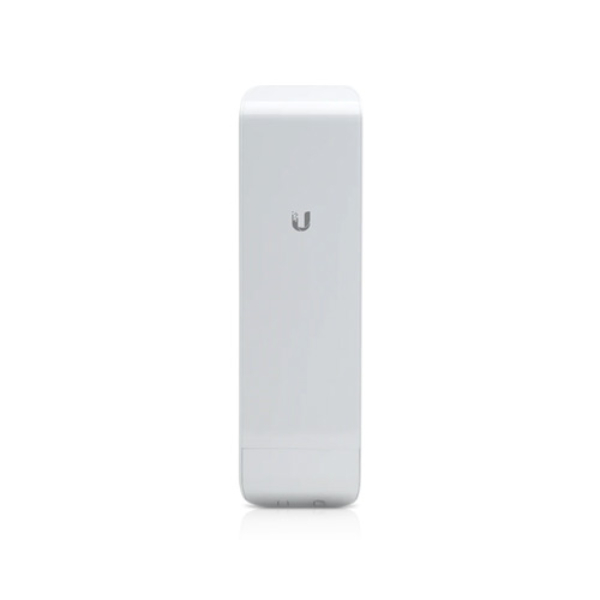

Employing Ubiquiti’s TDMA airMAX protocol, the NanoStationM schedules each client to send and receive data in pre-designated time slots via an intelligent AP controller, ensuring efficient, low-latency communication.
Dual Ethernet Connectivity
Includes a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
Intelligent PoE
Allows remote hardware resets from the power supply location.
Hardware Specifications
- Dimensions: 294 × 31 × 80 mm (11.57 × 1.22 × 3.15″)
- Weight: 400 g (14.11 oz)
- Power Supply (PoE): 24V, 0.5A | Max Consumption: 8W
- Power Method: Passive PoE (Pairs 4,5+; 7,8 Return)
- Frequency: 5 GHz (Worldwide: 5170–5875 MHz; USA: 5725–5850 MHz; USA DFS: 5250–5850 MHz)
- Gain: 14.6–16.1 dBi
- Networking: 2 × 10/100 Ethernet Ports
- Processor: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2, 8 MB Flash
- Cross-pol Isolation: ≥22 dB | Max VSWR: 1.6:1
- Beamwidth: 43° H / 41° V / 15° Elevation
- Polarization: Dual Linear
- Enclosure: Outdoor UV-stabilized plastic
- Mounting: Pole-Mount (kit included)
- Operating Temperature: -30 to 75°C (-22 to 167°F)
- Operating Humidity: 5–95% noncondensing
Compliance & Reliability
FCC Part 15.247, IC RS210, CE certified, RoHS compliant, with shock and vibration protection per ETSI300-019-1.4.
