airMAX Technology
The NanoStationM uses Ubiquiti’s TDMA-based airMAX protocol, allowing each client to transmit and receive data in scheduled time slots for higher efficiency and reduced latency compared to standard Wi-Fi.
Dual Ethernet Connectivity
Includes a secondary Ethernet port with software-enabled PoE output, ideal for seamless IP video integration.
Intelligent PoE
Remote hardware reset circuitry enables the device to be reset from the power supply location, providing convenient remote management.
Specifications
- Dimensions: 294 × 31 × 80 mm (11.57 × 1.22 × 3.15″)
- Weight: 400 g (14.11 oz)
- Power Supply: 24V, 0.5A PoE
- Max Power Consumption: 8W
- Power Method: Passive PoE (Pairs 4,5+; 7,8 Return)
- Operating Frequency: 2412–2462 MHz
- Gain: 10.4–11.2 dBi
- Networking Interfaces: 2 × 10/100 Ethernet Ports
- Processor: Atheros MIPS 24Kc, 400 MHz
- Memory: 32 MB SDRAM, 8 MB Flash
- Cross-pol Isolation: ≥ 23 dB
- Max VSWR: 1.6:1
- Beamwidth: 55° H-pol / 53° V-pol / 27° Elevation
- Polarization: Dual Linear
- Enclosure: Outdoor UV-stabilized plastic
- Mounting: Pole-mount kit included
- Operating Temperature: -30°C to 75°C (-22°F to 167°F)
- Operating Humidity: 5–95% non-condensing
- Wireless Approvals: FCC Part 15.247, IC RS210, CE
- RoHS Compliance: Yes
- Shock & Vibration: ETSI300-019-1.4

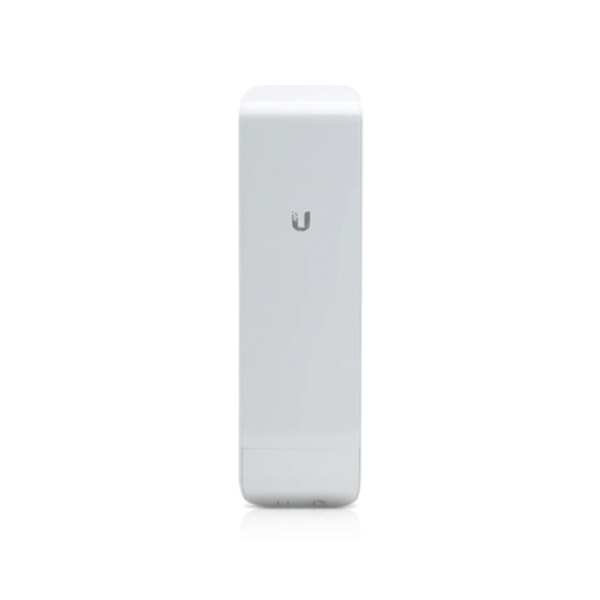

The NanoStationM delivers reliable, long-range outdoor wireless connectivity with robust performance, efficient spectrum usage, and flexible deployment options for challenging environments.
