Description

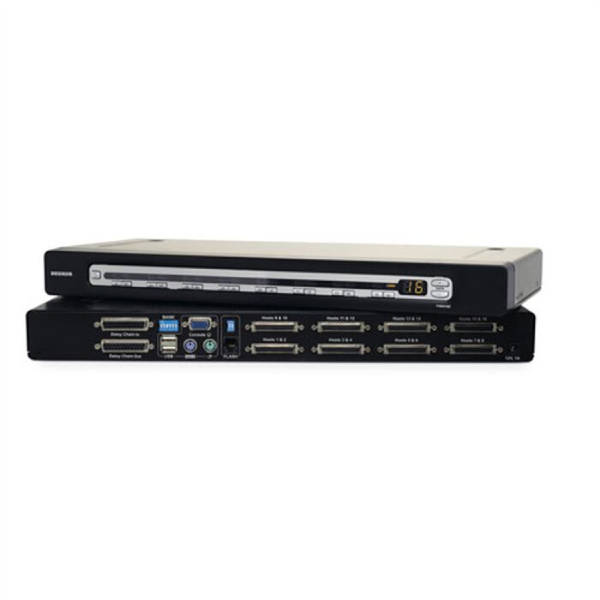

The OmniView PRO3 USB and PS/2 KVM Switch provides easy and dependable server control with extraordinary performance.
The Switch enables network administrators to monitor and control up to four, eight, or 16 USB- and PS/2-platform servers from a single console.
The PRO Series KVM Switches are the industry’s most popular for small to medium server rooms, branch locations, and test and development labs.
Designed to grow along with your server network, the Switch can be daisy-chained using dedicated daisy-chain ports with other OmniView PRO Series or SMB KVM Switches to support up to 256 servers.
Belkin PRO3 KVM Cables are required to connect your servers and computers.
Tech Specs
- General: Device Type: KVM switch – 16 ports – stackable; Enclosure Type: Desktop; Ports: 16 x KVM port(s); Keyboard / Mouse Interface: PS/2; Max Resolution: 1920 x 1440 @ 75 Hz; Features: On-Screen Display, firmware upgradable; Status Indicators: Port status
- Expansion / Connectivity: Interfaces:
- Keyboard / video / mouse (KVM): 16 x 50 pin Centronics
- Network stack device: 2 x 25 pin D-Sub (DB-25), 1 x RJ-11 – management
- Keyboard: 1 x generic – 6 pin mini-DIN (PS/2 style), 1 x 4 pin USB Type A
- Mouse: 1 x generic – 6 pin mini-DIN (PS/2 style), 1 x 4 pin USB Type A
- Display / video: 1 x VGA – 15 pin HD D-Sub (HD-15)
- Power: Power Device: Power adapter – external
- Miscellaneous: Width: 17.2 in/13.5 cm; Depth: 7.5 in/19 cm; Height: 3.5 in/8.9 cm; Weight: 12.1 lbs/5.5 kg; Color: Black; Cables Included: 1 x serial cable; Rack Mounting Kit: Included; Manufacturer Selling Program: Belkin B2B
- Software / System Requirements: OS Required: SunSoft Solaris 8, Novell NetWare 5.x, Microsoft DOS 5.x or later, Apple MacOS X, Microsoft Windows Server 2003, Red Hat Linux 8.x, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista
- Manufacturer Warranty: Service & Support: 3 years warranty; Service & Support Details: Limited warranty – 3 years
- Environmental Parameters: Min Operating Temperature: 32°F/0°C; Max Operating Temperature: 104°F/40°C; Humidity Range Operating: 0 – 80%
- Compatibility Information: Designed For: Belkin OmniView Dual-Rail LCD Console, Titan LCD Rack Console with PRO3
