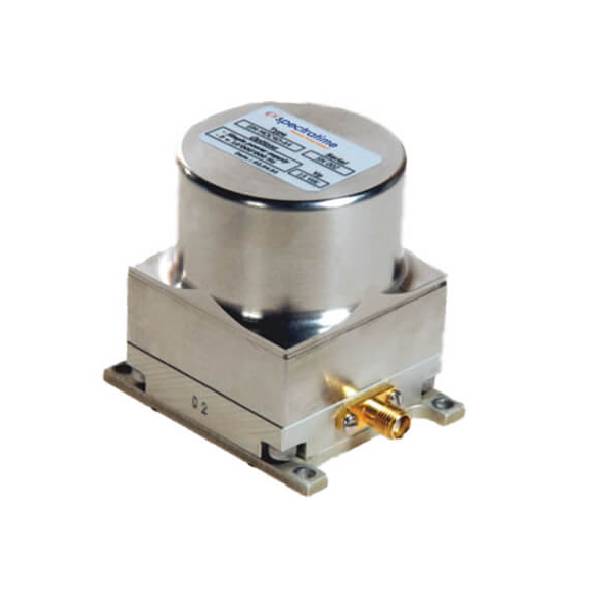

The MO is a cost-effective, high-performance, space-qualified master crystal oscillator designed for demanding space applications. Built with advanced space technology, it offers long lifetime and high reliability in harsh environments.
Key Specifications:
- Output/Input Frequency: Standard 10 MHz; optional 5–15 MHz
- Accuracy at shipment: < +1E-9
- Temperature range: -20 to 60°C
- Aging: < +3E-8 in the first year, < +1E-8 per year thereafter, and < +1E-10 per day
- Stability (ADEV): < 3E-12 at 1s, 10s, and 100s (optional down to < 5E-13)
- Phase noise at 10 MHz: from -100 dBc/Hz at 1 Hz to -155 dBc/Hz at 1 kHz (optionally better)
- Warm-up time at 25°C: 20 minutes with stability better than +2E-8
- Power consumption: 3.5–5.5 W (12–18 V), up to 8 W in some options
- Dimensions: 44 x 54 x 57 mm (1.73 × 2.12 × 2.24 inches)
- Weight: 220 g (0.48 lbs)
- Vibration sensitivity: Refer to specifications
- Lifetime/MTBF: 15 years or 9 million hours
