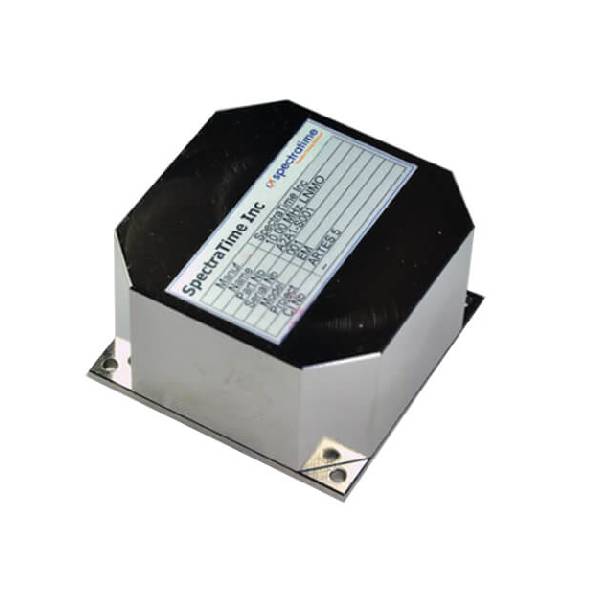

The LNMO is a cost-effective, ultra-high-performance, space-qualified master crystal oscillator designed with advanced technology for next-generation space applications. It offers long lifetime, high reliability, lightweight design, and ultra-low phase noise.
Key Features and Specifications:
- Output/Input: Standard 10 MHz; options from 5 to 40 MHz
- Accuracy: Temperature coefficient under +1E-9 (-20 to 60°C); aging less than +3E-8 in the first year and below +1E-8 annually afterward
- Stability (ADEV): Better than 1E-12 at 1s and 10s intervals
- Phase Noise at 10 MHz (dBc/Hz):
- 1 Hz: -100 to -105
- 10 Hz: -130 to -135
- 100 Hz: -140 to -145
- 1 kHz: -150 to -155
- 10 kHz: -160 to -165
- Warm-up time: 10 minutes to <+2E-8 standard; option for 5 minutes
- Power Consumption: 2.5W at 12V (standard), up to 6W at 15V (option)
- Size: 50 x 50 x 30 mm (1.96 x 1.96 x 1.18 inches)
- Weight: 100 grams (0.22 lbs)
- Vibration Sensitivity: Specified per application
- Lifetime and MTBF: 15 years, with mean time between failures of 9 million hours
