Description
FEATURES
- GIGABIT PERFORMANCE:
Minimize transfer times and stream high-bandwidth files to connected devices without interference - PLUG-AND-PLAY CONVENIENCE:
Instantly extend your office network with a quick and easy installation. - QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION:
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion. - AUTO-SENSING PORTS:
Automatically optimize speed for each connected device.
TECHNICAL SPECS

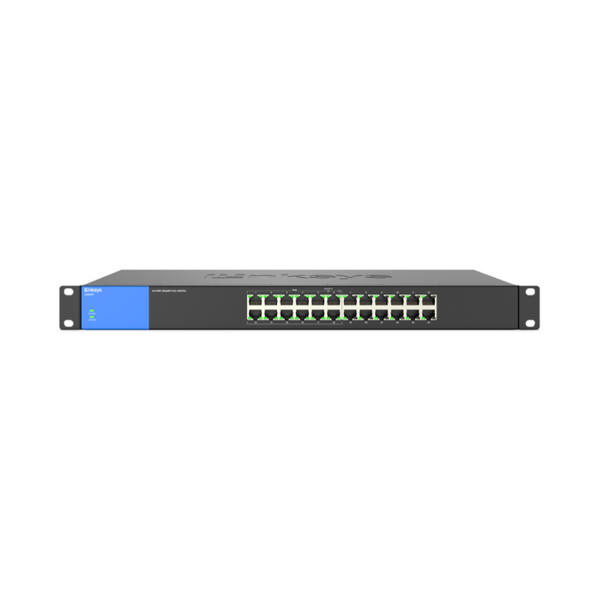

- Model Name: LGS124P
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at (PoE+)
- Ports: 24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
- LEDs: Link, speed, activity, and PoE indicators
- Performance: Full line rate and forwarding rate of 64B frame at:
- 1.488 Mpps for 1000M port
- 0.1488 Mpps for 100M port
- 0.01488 Mpps for 10M port
- Maximum Power Consumption: 8.69 W / 19.27 W
- MAC Address Table Size: 8,000 entries
- Bandwidth: 48 Gbps (non-blocking)
- Fans: One
- Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables.
- Dimensions (LxWxH): 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
- Weight: 2.758 kg (6.08 lbs)
- Power Consumption: 7.79 W / 17.65 W
- Power Consumption: 7.79 W / 17.65 W
- Power Input: 100–240 VAC, 50/60 Hz
- Power Saving: Cable connected detection, sleep mode
- Power Supply: Internal
- Operating Temperature: 0–50°C (32–122°F)
- Storage Temperature: -40–70°C (-40–158°F)
- Operating Humidity: 10–90% (non-condensing)
- Storage Humidity: 10–90% (non-condensing)
- Mounting: Rack
- Quality Of Service: 802.1p and DSCP
- Regulatory Compliance: FCC Class A, CE, UL, CB
- Warranty and Support: 5 Year Warranty
