Description
FEATURES
- GIGABIT PERFORMANCE:
Minimize transfer times and stream high-bandwidth files to connected devices without interference. - PLUG-AND-PLAY CONVENIENCE:
Instantly extend your office network with a quick and easy installation. - QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION:
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion. - AUTO-SENSING PORTS:
Automatically optimize speed for each connected device.
TECHNICAL SPECS

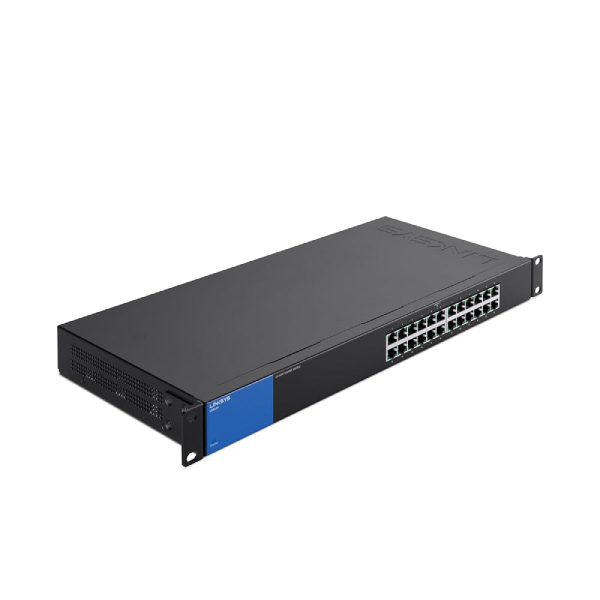

- Model Name: LGS124
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az
- Ports: 24 Gigabit Ethernet (10/100/1000) Ports
- LEDs: Link, speed, and activity indicators
- Performance: Full line rate and forwarding rate of 64B frame at:
- 1.488 Mpps for 1000M port
- 0.1488 Mpps for 100M port
- 0.01488 Mpps for 10M port
- MAC Address Table Size: 8,000 entries
- Bandwidth: 48 Gbps (non-blocking)
- Fans: None
- Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables
- Dimensions (LxWxH): 440 x 201 x 44 mm
- Weight: 2.290 kg
- Power: 110–240 VAC, 50/60 Hz
- Power Consumption: 3.62 W / 11.89 W
- Power Consumption: 4.39 W / 14.16 W
- Power Saving: Cable connected detection, sleep mode
- Power Supply: Internal
- Operating Temperature: 0–50°C
- Storage Temperature: -40–70°C
- Operating Humidity: 10–90% (non-condensing)
- Storage Humidity: 10–90% (non-condensing)
- Mounting: Rack
- Quality Of Service: 802.1p and DSCP
- Regulatory Compliance: FCC Class A, CE
- Warranty and Support: 5 Year Warranty
