The Allied Telesis IE300 Series are high-performing, feature-rich Layer 2 managed switches, purpose-built for industrial Ethernet applications. Qualified for demanding environments like manufacturing, roadway traffic control, and Smart Cities, these switches deliver robust performance and flexible deployment with extensive PoE options and advanced management capabilities.
Performance & Capacity

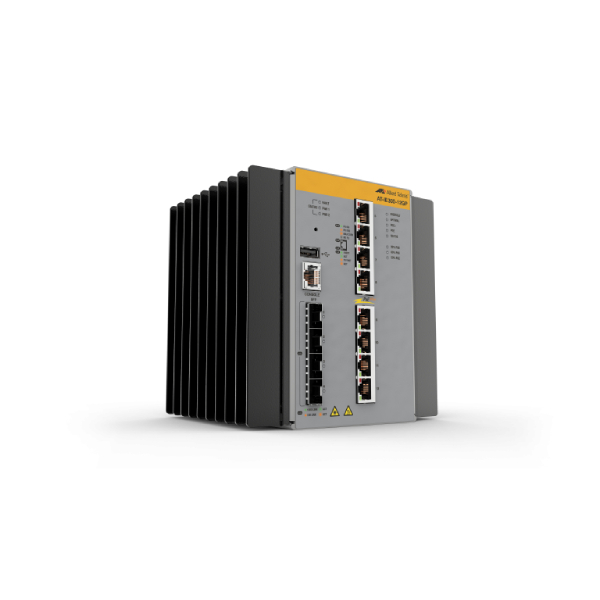

The IE300-12GP offers a 24Gbps switching fabric with a forwarding rate of 17.8Mpps (64-byte packet size). It supports:
- 16K MAC addresses
- 4K VLANs (managed)
- 9KB jumbo frame support
- 8 QoS priority queues
- 1K Layer 2 and 256 Layer 3 multicast groups
Power over Ethernet
Designed for maximum flexibility and control, the switch supports:
- IEEE 802.3at PoE+ (30W per port)
- Hi-PoE sourcing (60W)
- Continuous Power over Ethernet (CPoE) to maintain PoE during hot-swap scenarios
- Configurable power budget and per-port power limit settings
Network Management
Allied Telesis Autonomous Management Framework™ (AMF) simplifies device management by automating configuration, backup, recovery, and firmware upgrades. AMF allows the entire network to be managed as a single virtual device, streamlining operations and enhancing efficiency.
Secure Network Access
IEEE 802.1X port-based authentication ensures that only authorized users access the network. Guests can be securely segregated while maintaining private network integrity. Additional security features include MAC filtering, ACLs, and secure management protocols like SSH and SSL.
Flexible Connectivity
The IE300 Series supports both Gigabit and Fast Ethernet SFPs, making it ideal for gradual upgrades. This compatibility ensures connectivity with legacy 100FX infrastructure while enabling future-ready gigabit networking.
High Availability
The switch ensures stable and reliable operation with support for network resiliency protocols like STP, RSTP, MSTP, and Ethernet Protection Switched Ring (<50ms failover).
Power Efficiency
Dual power inputs provide redundancy, and internal DC/DC isolation enhances electrical safety. The configurable power system aligns with PSU capabilities for optimized energy use and performance.
