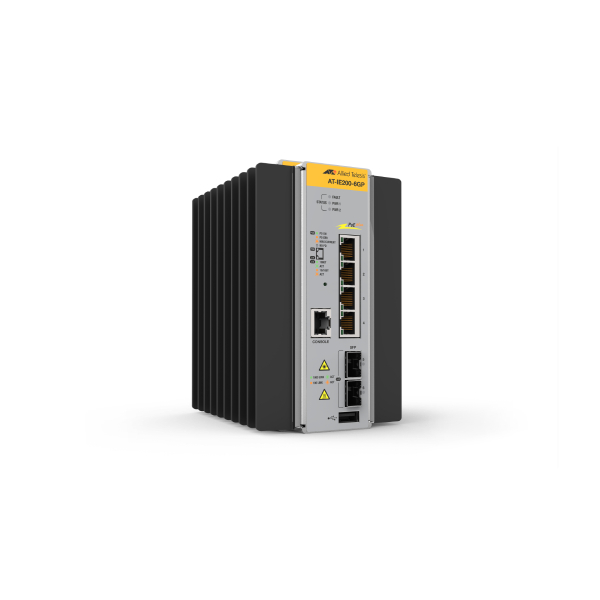

The IE200 Series wire-speed Layer 2 switches are engineered for industrial Ethernet applications. With an extended operating temperature range of -40°C to 75°C, these switches perform reliably in extreme environments, including industrial and outdoor deployments.
Cloud-Driven Intelligence
Management options include industry-standard CLI, SNMP, Telnet, SSH, and the Allied Telesis Autonomous Management Framework (AMF). AMF simplifies device provisioning, recovery, and firmware updates across your network infrastructure.
Features & Benefits
High Performance Switching
These high-performing, cost-effective switches support features essential to industrial networking:
- Port-based VLANs and IEEE 802.1p QoS
- Port trunking/link aggregation for increased throughput
- Priority queuing and port mirroring for optimized traffic control
- IEEE 802.1x security for network access control
- Support for up to 2K MAC addresses
Securing the Network Edge
Security is reinforced with IEEE 802.1X port-based authentication. Unknown devices can be isolated to predefined segments, enabling internet access without compromising internal network integrity.
Gigabit and Fast Ethernet Support
The SFP ports accommodate both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). This offers cost-effective flexibility, enabling gradual migration from legacy 100FX to modern Gigabit Ethernet.
Reliable Network Resiliency
Network stability is ensured with rapid recovery under 50ms, utilizing protocols such as Allied Telesis Ethernet Protection Switched Ring and ITU-T G.8032 for fault tolerance and redundancy.
