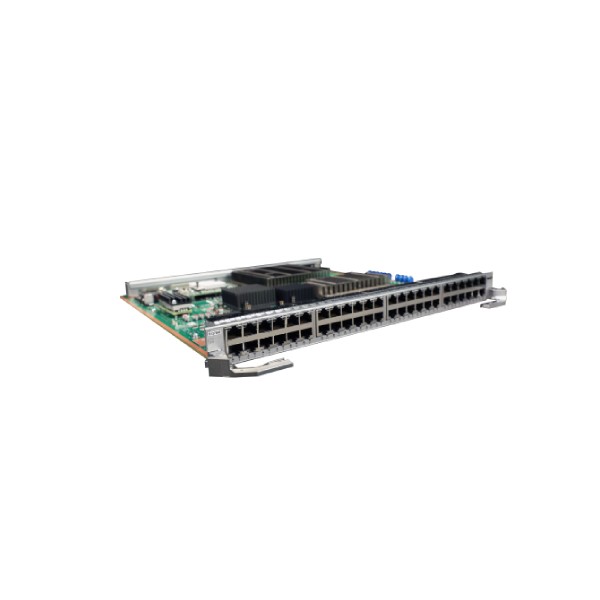

The Huawei LST7G48TX6S0 (Part Number: 03034DHC) is a high-density 48-port 100/1000BASE-T interface card designed to deliver scalable and reliable Gigabit Ethernet connectivity. Ideal for enterprise and data center networks, it offers robust performance with consistent throughput, energy efficiency, and a compact design. Its X6S interface and RJ45 port configuration make it suitable for various high-performance switching platforms.
Technical Specifications
- Model: LST7G48TX6S0
- Part Number: 03034DHC
- Ports: 48 x 100/1000BASE-T (RJ45)
- Form Factor: X6S Interface Card
Dimensions
- Without Packaging: 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
- With Packaging: 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight
- Without Packaging: 3.70 kg (8.16 lb)
- With Packaging: 5.75 kg (12.68 lb)
Performance & Power
- Typical Power Consumption: 140 W
- Maximum Power Consumption: 144 W
- Typical Heat Dissipation: 477.69 BTU/hour
- Maximum Heat Dissipation: 491.34 BTU/hour
Memory
- Installed Memory: 1 GB
