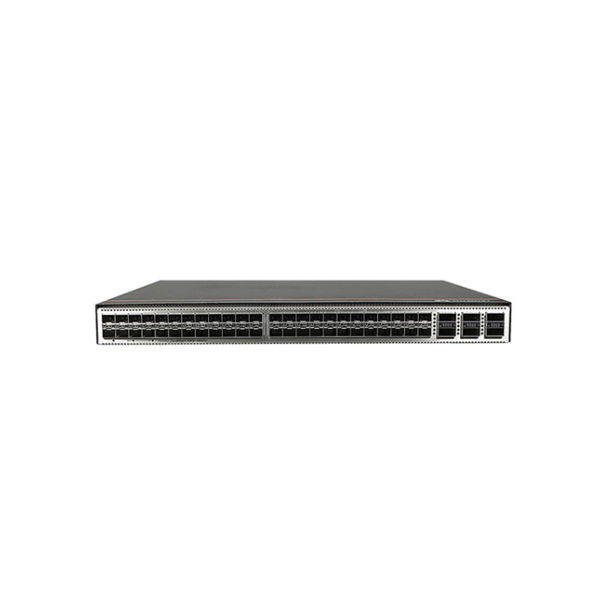

The Huawei CE6863E-48S6CQ is a next-generation data center switch with high-density 25GE and 100GE ports. Featuring 48 x 25GE SFP28 and 6 x 100GE QSFP28 ports, it supports high-performance cloud infrastructure and virtualized services. Designed for reliability, scalability, and efficiency, the switch offers advanced performance, enhanced power options, and flexible deployment for varying airflow and installation needs.
Technical Specifications
- Dimensions (with packaging): 175 x 650 x 550 mm (6.9 x 25.6 x 21.7 in.)
- Dimensions (without packaging): 43.6 x 442.0 x 420.0 mm (1.72 x 17.40 x 16.54 in.)
- Weight (base/full config): 5.7 kg / 7.8 kg (8.95 kg / 11.05 kg with packaging)
- Installation: Cabinet Mounting
- CPU: 4-core, 1.4 GHz
- Memory: 4 GB DRAM, 4 GB NAND Flash, 64 MB NOR Flash
- USB/Console: Supported, RJ45 port
- Power Supply Modes: AC, DC, HVDC (1+1 backup)
Network Interfaces
- Downlink: 48 x 25GE SFP28 (supports 10GE/1GE, grouped in fours, copper cables supported with limitations)
- Uplink: 6 x 100GE QSFP28 (supports 40GE, no port-splitting, copper cable use restricted to stacking/M-LAG)
- Stack Ports: Supported on both 25GE and 100GE optical ports
Power Consumption and Heat Dissipation
- Typical Power: 261 W (optical), 226 W (high-speed cables)
- Max Power: 384 W
- Static Power: 167 W
- Typical Heat: 771–891 BTU/hour
- Static Heat: 570 BTU/hour
- Max Heat: 1310 BTU/hour
Power Input Options
- AC Input: 100–240 V AC, 50/60 Hz
- DC Input: –48 V to –60 V DC
- 240 V DC: Supported
- HVDC Input: 240 V DC to 380 V DC
The CE6863E-48S6CQ is a powerful switching platform, ideal for modern data center networks requiring speed, scalability, and intelligent power management. It comes with multiple airflow options and part numbers to fit various cooling strategies.
