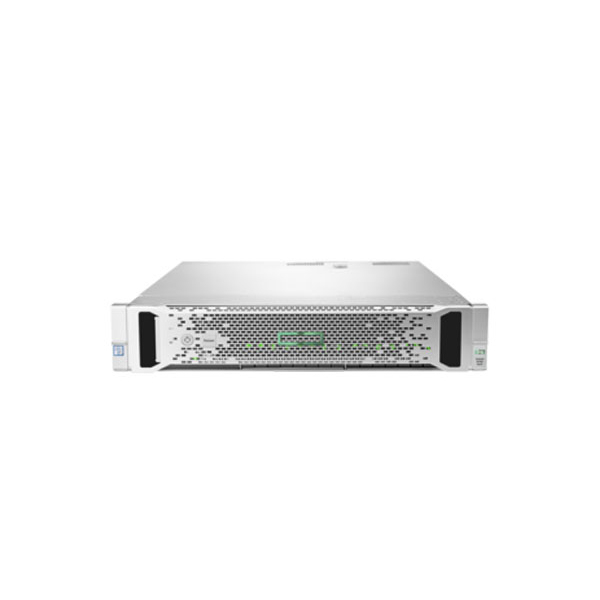

The HPE ProLiant DL560 Gen9 Server delivers high-performance 4-socket computing in a dense 2U rack form factor, supporting up to four Intel Xeon E5-4600 v3/v4 processors. It offers up to 3 TB DDR4 memory across 48 DIMM slots, enhanced with HPE DDR4 SmartMemory for improved workload performance, error protection, and energy efficiency.
Storage flexibility includes up to 24 SFF drives with NVMe options, embedded HPE Dynamic Smart Array B140i for boot and data, and HPE Flexible Smart Array or Smart SAS HBA controllers with 4 GB FBWC for optimal 12 Gb/s performance. The server also supports GPUs and networking cards through seven PCIe Gen3 expansion slots.
Networking options include embedded 4x1GbE, FlexibleLOM, and PCIe standup adapters with 1GbE, 10GbE, or 25GbE speeds, providing adaptable bandwidth and fabric options. Power redundancy is achieved via dual 1200W or 1500W HPE Common Slot Power Supplies, combined with high-efficiency Platinum Plus units up to 94% efficiency.
Reliability and efficiency are enhanced with hot-pluggable fans and drives, improved chassis design for serviceability, optional SID monitoring, and support for ASHRAE A3/A4 ambient temperature standards to reduce cooling costs.
Infrastructure Management
HPE OneView delivers simplified server, storage, and networking management, with remote deployment, monitoring, and maintenance via HPE iLO. Firmware and driver updates are optimized using Smart Update, including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP).
Technical Specifications
- Processor Family: Intel® Xeon® E5-4600 v3/v4
- Number of Processors: 1, 2, or 4
- Processor Cores: 6–22 per processor
- Processor Cache: 25–55 MB L3
- Processor Speed: 2.9 GHz
- Form Factor: 2U rack
- Memory Maximum: 3 TB DDR4 SmartMemory
- Memory Slots: 48 DIMM
- Memory Protection: Advanced ECC, DIMM Address/Parity Protection, Online Spare, Lock-Step Mode
- Drives Supported: Up to 24 SFF SAS/SATA/SSD, NVMe via Express Bay
- Expansion Slots: Up to 7 PCIe 3.0
- Network Controller: 1Gb 331FLR (4-port) or 10Gb 533FLR-T FlexFabric (2-port), depending on model
- Storage Controller: Dynamic Smart Array B140i, Smart Array P440ar, or P840
- Power Supply: 2x HPE Common Slot
- System Fans: Hot-plug redundant standard
