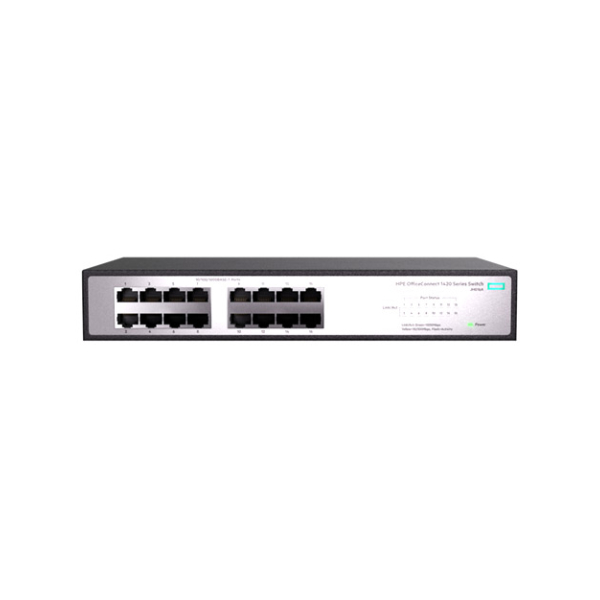

A cost-effective, full-width Gigabit switch designed for small offices and workgroups. The HPE OfficeConnect 1420 provides 16x autosensing 10/100/1000 RJ-45 ports in a rack-mountable 1U chassis (rack-mount kit included) and can also sit on a desktop for flexible deployment.
Key benefits
- Affordable, no-frills Gigabit connectivity for growing networks.
- Rack-ready or desktop operation with included mounting hardware.
- Low power draw for energy-sensitive environments.
Technical highlights
- Ports: 16 × RJ-45 autosensing 10/100/1000 Mbps (supports up to 16 ports).
- Switching capacity: 32 Gbps.
- Throughput: Up to 23.8 Mpps.
- Latency: < 8 µs at 100 Mbps; < 16 µs at 1 Gbps.
- Power consumption: 12 W (maximum).
- Input voltage: 100–240 VAC (rated).
- Memory & storage: 1 MB flash.
- Packet buffer: 512 KB.
