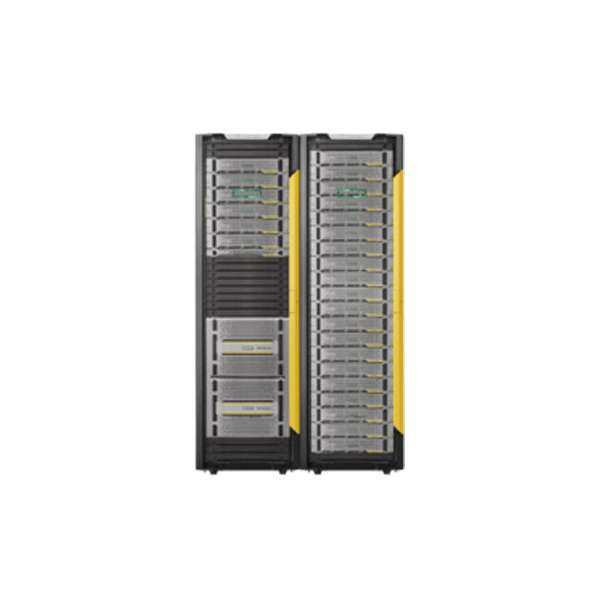

Scalable Performance for Enterprise Growth
The HPE 3PAR StoreServ 20000 delivers industry-leading performance with over 3 million IOPS at sub-millisecond latency. Scale capacity up to 9.6 PB raw (over 20 PB usable) across up to eight controllers in a Mesh-Active cluster. Achieve a 6× density advantage with more than 9 PB of usable capacity in a single expansion rack, cutting storage footprint by 75% without compromising performance.
Flexible and Intelligent Storage
Support unpredictable business demands with an elastic pool of storage that allows on-demand workload balancing. Unified management of block, file, and object storage simplifies administration, while HPE 3PAR Gen5 ASIC accelerates mixed workloads. Self-configuring, self-provisioning, and self-optimizing features reduce management overhead.
Resilient and Reliable
Maintain Tier-1 resiliency and high availability with redundant controllers, power supplies, persistent cache, and drive sparing. Deliver consistent QoS with HPE 3PAR Priority Optimization Software and achieve application-integrated recovery with near-synchronous RPOs. Simplify backup and restores with HPE Recovery Manager Central.
Future-Ready and Hybrid-Ready
Modernize existing EMC, HDS, or IBM storage with seamless, no-cost data migration. Move data across any HPE 3PAR model effortlessly. The HPE Flash Now Program offers all-flash performance on-prem at cost-effective rates. Automated SAN configuration with HPE Smart SAN ensures efficient deployment.
Technical Specifications
- Capacity: 6 PB Raw, 15 PB Usable (with 3.84 TB cLMC SSDs + HPE compaction)
- Drive Options: (1920) SFF SAS/MDL SAS/SSD, (1024) SFF/LFF SSD, (960) LFF MDL SAS
- Enclosures: 3PAR 12 Gb/sec SAS SFF or LFF, max 24 drives per enclosure
- Host Interfaces: 16 Gb Fibre Channel (20 ports/controller), 10 GbE iSCSI/FCoE (10 ports/controller), 10 Gb Ethernet (6 ports)
- Cache: Up to 51.6 TiB (depending on model)
- Controllers: 3PAR 6-core or 8-core 2.5 GHz, up to 8 nodes per cluster
- Availability Features: Redundant PSUs, battery backup, Mesh-Active controllers, persistent cache, drive sparing
- Supported OS: HP-UX, HP OpenVMS, IBM AIX, Windows Server, Hyper-V, Citrix XenServer, Oracle Linux/UEK/Solaris, Ubuntu, RHEL, VMware ESX/ESXi, SLES, Apple OS X, plus virtualization support
Key Benefits
- Massive scalability and density
- Flash-optimized high performance
- Unified and automated management
- Tier-1 resiliency and QoS
- Hybrid and future-ready storage infrastructure
