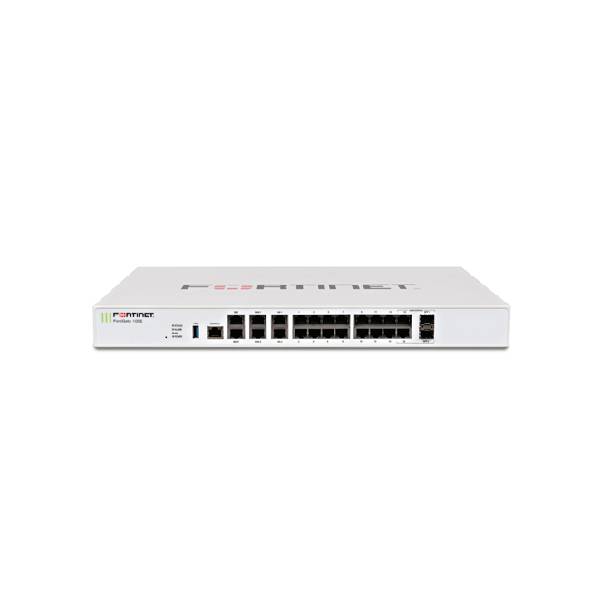

Fortinet FortiGate 100E – FG-100E-BDL in Saudi Arabia

The FG-100E-BDL includes Fortinet FG-100E hardware with a 1-year 8×5 FortiCare and FortiGuard UTM Bundle, offering comprehensive security for midsize to large enterprises.

Interfaces & Modules

GE RJ45 Ports: 14

• Management/HA/DMZ Ports: 1 / 2 / 1
• WAN Ports: 2
• Shared GE RJ45/SFP Ports: 2
• USB Port: 1
• Console Port: 1
• Included Transceivers: 0

System Performance & Capacity

• Firewall Throughput (1518 / 512 / 64 byte UDP): 7.4 / 7.4 / 4.4 Gbps
• Firewall Latency (64 byte UDP): 3 μs
• Firewall Throughput (Packets/sec): 6.6 Mpps
• Concurrent TCP Sessions: 2M
• New TCP Sessions/sec: 30,000
• Firewall Policies: 10,000
• IPsec VPN Throughput: 4 Gbps
• VPN Tunnels: 2,000 (gateway-to-gateway), 10,000 (client-to-gateway)
• SSL-VPN Throughput: 250 Mbps, Recommended Users: 500
• SSL Inspection Throughput (HTTPS, IPS avg.): 130 Mbps
• Application Control (HTTP 64K): 1 Gbps
• CAPWAP Throughput: 1.5 Gbps
• Virtual Domains: 10 (default/maximum)
• FortiSwitch Support: Up to 24
• FortiAPs: 64 total / 32 tunnel
• FortiTokens: 5,000
• Registered FortiClients: 600
• High Availability: Active/Active, Active/Passive, Clustering

Enterprise Traffic Mix Performance

• IPS: 500 Mbps
• NGFW: 360 Mbps
• Threat Protection: 250 Mbps

Dimensions & Power

• Size: 1.75 × 17 × 10 in (44.45 × 432 × 254 mm), 1 RU rack-mount
• AC Power: 100–240V, 50–60 Hz
• Power Consumption: 23 W avg / 25.5 W max
• Heat Dissipation: 87 BTU/h

Operating Environment & Certifications

• Operating Temperature: 32–104°F (0–40°C)
• Storage Temperature: -31–158°F (-35–70°C)
• Humidity: 10–90% non-condensing
• Noise Level: 40.4 dBA
• Operating Altitude: Up to 7,400 ft (2,250 m)
• Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
• Certifications: ICSA Labs (Firewall, IPsec, IPS, Antivirus, SSL-VPN), IPv6
