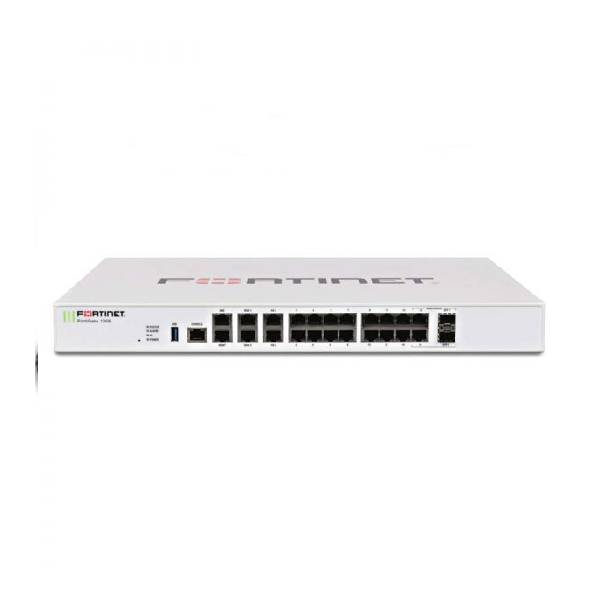

Fortinet FortiGate 100E – FG-100E-BDL-950-12 in Saudi Arabia

Interfaces and Modules

• 14x GE RJ45 ports
• Management/HA/DMZ Ports: 1 / 2 / 1
• 2x GE RJ45 WAN ports
• 2x GE RJ45/SFP shared ports
• 1x USB port, 1x Console port
• No included transceivers

System Performance — Enterprise Traffic Mix

• IPS Throughput: 2,500 Mbps
• NGFW Throughput: 2,4360 Mbps
• Threat Protection Throughput: 2,5250 Mbps

System Performance and Capacity

• Firewall Throughput (UDP 1518 / 512 / 64 bytes): 7.4 / 7.4 / 4.4 Gbps
• Firewall Latency (64-byte UDP): 3 μs
• Firewall PPS: 6.6 Mpps
• Concurrent TCP Sessions: 2M
• New TCP Sessions/sec: 30,000
• Firewall Policies: 10,000
• IPsec VPN Throughput: 4 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels: 2,000
• Client-to-Gateway IPsec VPN Tunnels: 10,000
• SSL-VPN Throughput: 250 Mbps
• Concurrent SSL-VPN Users (Tunnel Mode): 500
• SSL Inspection Throughput (IPS, avg. HTTPS): 130 Mbps
• SSL Inspection CPS (avg. HTTPS): 130
• SSL Inspection Concurrent Sessions (avg. HTTPS): 3,125,000
• Application Control Throughput (HTTP 64K): 1 Gbps
• CAPWAP Throughput (1444-byte UDP): 1.5 Gbps
• Virtual Domains: 10 (default) / 10 (maximum)
• Max FortiSwitches Supported: 24
• Max FortiAPs: 64 (total) / 32 (tunnel)
• Max FortiTokens: 5,000
• Max Registered FortiClients: 600
• High Availability: Active/Active, Active/Passive, Clustering

Dimensions and Environment

• Size: 1.75 × 17 × 10 in (44.45 × 432 × 254 mm), 1 RU rack-mount
• Power: 100–240V AC, 50–60 Hz; Max Current: 100V / 0.52A, 240V / 0.22A
• Power Consumption: 23 W average / 28.6 W max (51.9 VA)
• Heat Dissipation: 97.6 BTU/h
• Operating Temp: 32–104°F (0–40°C); Storage Temp: -31–158°F (-35–70°C)
• Humidity: 10–90% non-condensing
• Noise Level: 40.4 dBA
• Operating Altitude: Up to 7,400 ft (2,250 m)
• Certifications: ICSA Labs (Firewall, IPsec, IPS, Antivirus, SSL-VPN), IPv6
• Compliance: FCC Part 15B Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
