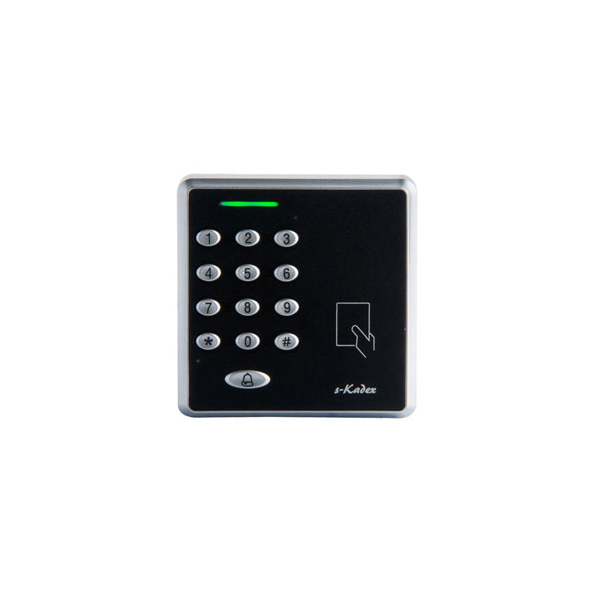

Fingertec S-Kadex Simple Door Access Readers

Compact Yet Powerful

Despite its slim size, the s-Kadex delivers fast verification times of under one second and stores up to 30,000 transactions, proving that great performance can come in a small package.

Effortless Installation

Thanks to its simple design and compact build, the s-Kadex is easy to install and fits seamlessly into any location without hassle.

Standalone Operation

Designed for simplicity, the s-Kadex can function as a complete standalone device, making it a cost-effective and practical access solution for small offices or homes.

Easy Management & Enrollment

Managing users is straightforward—simply enter the administrator password to enroll or delete data, ensuring quick and efficient control.

Clear Event Notifications

Equipped with a buzzer and LED indicators, the s-Kadex provides clear audio and visual signals to keep you informed of all device events.

Cost-Effective Flexibility

Pair the s-Kadex with other readers in the Kadex family for a versatile, budget-friendly access control system tailored to your needs.

Enhanced Security Options

The s-Kadex supports 12VDC/relay output electromagnetic locks and can connect to an NO alarm, offering stronger protection for your premises.

Multiple Verification Modes

Choose your preferred security level with four verification methods—card (RFID/MiFARE), password, card or password, or card and password.

Specifications

• Surface Finishing: Acrylonitrile Butadiene Styrene (ABS)
• Antenna Type: Card
• Microprocessor: 400 MHz
• Memory: 32MB flash memory
• Algorithm: BioBridge VX 10.0
• Product Dimensions (mm): 88 x 25 x 88

Storage

• Cards: 500
• Passwords: 8 sets (max 4 digits per password)

Enrollment & Verification

• Methods: Card or password
• Password length: Up to 4 digits
• Verification time: < 1 second

Card Technology

• RFID: 64-bit, 125kHz, RF output power (EN300-330): Yes
• MIFARE: MFIS50/S70, 13.56MHz: Made to order

Operating Environment

• Temperature: 0 ~ 45°C
• Humidity: 20 ~ 80%
• Power Input: DC 12V 3A

Access Control

• EM Lock Driving Output: DC 12V / relay output
• Alarm Output: NO only
• Door Sensor: Yes (NO/NC)

Group Verify Options

• Password only
• Card only
• Card or password
• Card and password
