Key Features
- Multiple Verification Options
R2 supports fingerprint as the primary verification method and also accepts card, password, or combined methods for flexible authentication. - Complete Biometric Access Solution
Pair the R2 master with the R2c slave to create a fully biometric in/out access system, preventing unauthorized entries and exits. - Centralized Remote Management
Use Ingress to manage remote doors, configure access settings, and review all access activity from a single control point. - Built-In Alarm Support
Integrate external alarms to alert on emergencies or break-ins. Group TimeZone and Group Verify features further tighten access control. - Accurate Fingerprint Matching
R2 employs minutiae-point matching (advanced fingerprint algorithm) to compare live scans with stored templates and ensure reliable identity verification. - Simple Data Transfer
Primary connectivity is TCP/IP; when unavailable, use the USB flash port to export transaction logs. - Short Message & Workcode Support
Send personalized short messages to terminals upon verification and let employees report activities using selectable workcodes.
Technical Specifications

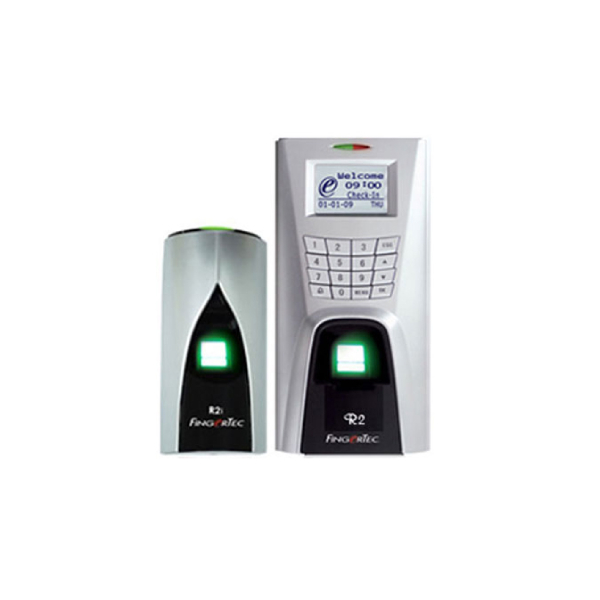

Models: R2 (Master) | R2c (Slave)
Finish: ABS (Acrylonitrile Butadiene Styrene)
Scanner: Non-coated optical scanner
Processor: 400 MHz (R2) | Managed by master (R2c)
Memory: 128 MB flash + 32 MB SDRAM
Algorithm: BioBridge VX 9.0 / VX 10.0 (R2) | Supports VX 10.0 (R2c)
Push Technology: Yes (R2)
Dimensions (L × W × H)
- R2: 94 × 50 × 189 mm
- R2c: 64 × 42 × 135 mm
Storage Capacity
- Fingerprint templates: 3,000 (master)
- Transactions: 120,000
Enrollment & Verification
- R2: Fingerprint (1:1, 1:N), Card & Password — recommended 2 fingerprints per user, any-angle placement, verification <1s
- R2c: Fingerprint (1:N) & Card — storage and management handled by master
Performance
- FAR: <0.0001% | FRR: <1%
Card Technology
- RFID: 64-bit, 125 kHz (supported)
- MIFARE (MFIS50/S70, 13.56 MHz) — made to order
- HID (HID 1326, 26-bit, 125 kHz) — made to order (R2); N/A for R2c
Communications
- R2: TCP/IP, RS232, RS485, USB disk (baud rates 9600–115200), Wiegand 26-bit input/output
- R2c: RS485
Operating Environment
- Temperature: 0°C ~ 45°C | Humidity: 20% ~ 80%
- Power: DC 12V 3A (R2) | R2c powered by master
Time Attendance & Multimedia
- Workcodes: Yes (R2)
- Voice prompts & short messaging: Yes (R2)
Access Control
- EM lock output: DC 12V 3A / relay (R2) | R2c managed by master
- Alarm output: NO/NC
- Anti-passback: Yes
Languages
- Terminal (R2): English (standard), Arabic, Indonesian, Chinese Traditional (Cantonese), Chinese Simplified, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian; other languages available on request.
- Software: Arabic, Bulgarian, Chinese (S/T), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese.
