The Kadex family (Kadex, m-Kadex, i-Kadex) delivers a flexible, cost-effective access and time-attendance solution. Compact yet powerful, these terminals combine large storage, multiple verification options, waterproof durability (m-Kadex), and simple management via Ingress software — ideal for SMEs and organizations using card-based systems.
Key Benefits
- High Capacity: Supports up to 30,000 cards and 50,000 transaction logs — plenty for medium-sized deployments.
- Cost-Effective System Design: Mix Kadex, m-Kadex and i-Kadex units (Kadex for main entrances, m-Kadex for secondary entrances, i-Kadex for exits) to optimize performance and budget.
- Flexible Verification: Use card or password verification (Kadex) or card-only options (m-Kadex); i-Kadex works as an exit capture station.
- Shift & Time Management: Program up to 50 time zones—ideal for companies with rotating shifts.
- Easy Administration: Manage devices and export transaction logs using the bundled Ingress software; USB flash disk support simplifies offline transfers.
- Built-In Alarm Support: Connect external alarms to receive alerts for intrusions or fire events.
- Simple Enrollment: Enroll or manage terminals quickly — administrators can use a swipe card for enroll/delete/reset.

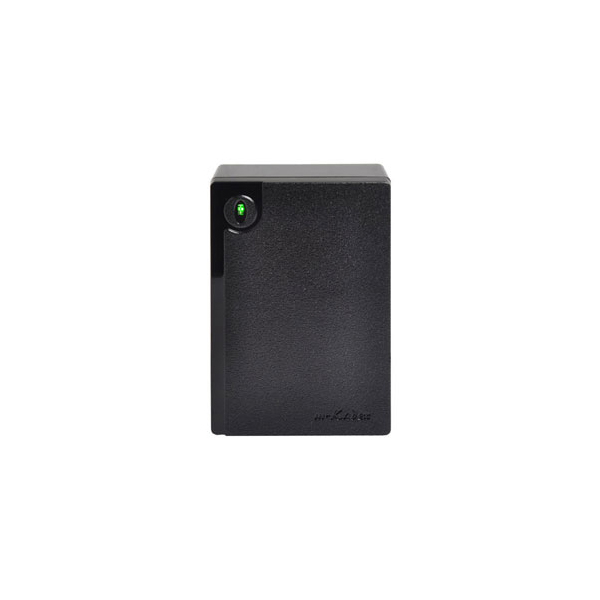

- Durable & Weatherproof: m-Kadex is IP65 rated (dustproof and water-resistant) for outdoor or harsh environments.
- Versatile Integration: Wiegand 26-bit output for wide compatibility with third-party controllers.
Technical Specifications
Models: Kadex | m-Kadex | i-Kadex
Materials / Finish
- Kadex: ABS (Acrylonitrile Butadiene Styrene)
- m-Kadex: Polycarbonate / ABS
Scanner / Processor / Memory
- Scanner: RFID antenna
- Processor: 400 MHz microprocessor (Kadex) / managed by master for others
- Memory: 8 MB flash + 32 MB SDRAM (Kadex)
- Algorithm: BioBridge Vx9.0
Dimensions (L × W × H, mm)
- Kadex: 92 × 49 × 137
- m-Kadex: 92 × 29 × 134
- i-Kadex: 55 × 15 × 100
Storage
- Cards: 30,000 (Kadex; m-/i- managed by master)
- Transactions: 50,000
Enrollment & Verification
- Methods: Card or password (Kadex); Card only (m-Kadex); Card capture station (i-Kadex)
- Card per user ID: 1 (managed by master)
- Reading distance: 40–80 mm (RFID/HID), 30–50 mm (MIFARE) — Kadex listed as 50–80 mm in original
- Verification time: <1 second (Kadex); managed by master for others
Card Technology
- RFID: 64-bit, 125 kHz — supported
- MIFARE (MFIS50/S70, 13.56 MHz) — made to order
- HID (HID 1325, 26-bit, 125 kHz) — made to order (Kadex); N/A for some models
Communications
- Kadex: TCP/IP, RS232, RS485, USB flash disk; Wiegand 26-bit input/output
- m-/i-Kadex: Wiegand 26-bit output
- Baud rates: 9600 / 19200 / 38400 / 57600 / 115200
Operating Environment & Power
- Temperature: Kadex 0–45°C, m-/i-Kadex -10–70°C
- Humidity: 20–80%
- Power input: Kadex DC 12V 3A | m-/i-Kadex DC 12V 1A
- IP65 rating: m-Kadex = Yes, Kadex = No
Time Attendance
- Work codes: Supported (Kadex)
Multimedia / User Interface
- Voice prompts and short messaging: Kadex supports voice; m-/i- may be limited (N/A)
Access Control Outputs
- EM lock drive: Kadex DC 12V 3A (others managed by master)
- Alarm output: NO/NC supported
- Anti-passback: Supported
Languages (display/voice — Kadex)
English (standard), Arabic, Malay, Indonesian, Traditional & Simplified Chinese, Cantonese, Thai, Vietnamese, Korean, Spanish, Portuguese (PT & BR), Polish, French, Russian, German, Italian, Turkish, Persian, Slovak, Greek, Dutch, Hebrew, Romanian, Bulgarian — other languages available upon request.
