Description
SVS – Storage Video Server. Recording Server, Playback Server, or VMS Management Server. SVS Series supports 50 – 500 cameras for video surveillance systems. Fibrenetix SVS Series of purpose-built video streaming servers offer excellent storage capacity combined with high-performance I/O controllers, optimised for video streaming.
In the surveillance industry, there has never been more focus on Quality, Reliability, and Cost Efficiency. Fibrenetix Storage Video Server (RS2, RS3 and RS9 Series) has been designed to meet these growing demands.
SVS RS9 – 2U and 3U Form Factor: Available as an 8-bay server supporting up to 200 cameras and up to 80TB built-in storage per server. Expansion via 2x 60-bay JBOD units offers up to 1.2 Petabytes per server. Includes Fibrenetix xRAID-6 video-optimised RAID controller for over 30% higher performance and camera count compared to standard servers.

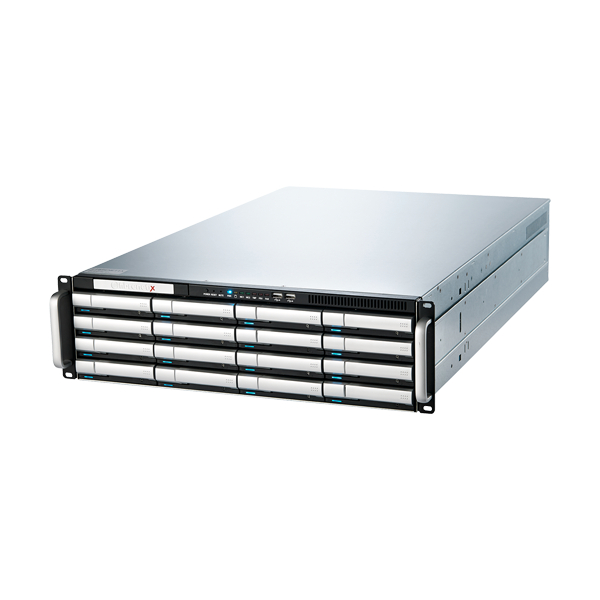

High-Capacity 3U Server: The Fibrenetix SVS 3U-16-bay server, with dual 12-core processors, 512GB memory, and up to 160TB internal storage, is designed for large-scale surveillance projects with 100–500 cameras.
Tech Specs:
Series: S9 SERIES – RS9-1664 SERIES
Product Code: RS9-1664-861-M16-A9
Processor: Intel® Xeon® Scalable CPU
Number of CPUs: 2
Maximum Core per CPU: 24
Memory (Min|Max): 16GB – 2048GB
OS Storage (internal 2.5”): 2x 240GB SSD
Storage Bays: 16x Hot-swap
Max. HDD Capacity Supported: 18TB
Maximum Raw Storage Capacity: 288TB
Max Capacity – SAS: 4.6PB
Max Capacity – Per IP SAN Controller: 9.2PB
Hardware RAID Levels: 0, 1, 3, 5, 6, 50, 60
Optional 10GBps Support: Yes
Network: 2 + 4
Graphics (Standard): Aspeed AST2500
USB Ports: 2x USB 3.0 – 2x USB 2.0
Video Ports: 1 x VGA port
Hot-swap Components: HDDs, PSUs, FANs
Operating System: Windows Storage Server 2016
Power Supply: 2x 800W
Voltage: 100–127/200–240Vac
Dimensions (D x W x H): 700 x 444 x 132 mm (3U)
Net Weight: 23.6 kg
Operating Temperature: 10℃ ~ 35℃
Certification: BSMI, CE, RCM, FCC (Class A)
Warranty Period: 3 Years
BTU/hr: 2735.36
