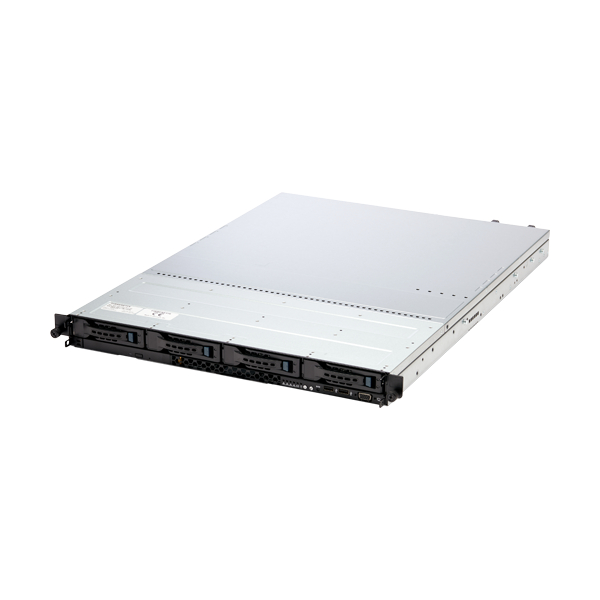

Fibrenetix- Storage Video Server- RS3-462-xx-Ax Series

Features

  • Compact 1U server with pre-installed operating system.

  • Choice of Windows 10 Pro or Windows Storage Server 2016.

  • 8GB memory standard, upgradeable for higher performance.

  • Powered by Intel® Xeon® Scalable Processor or Intel® Gold-Series CPU.

  • Dual 240GB SSDs in RAID 1 for applications and OS, ensuring reliability and redundancy.

  • 4 x 3.5” HDD bays, supporting up to 72TB of storage capacity.

  • Optional hardware RAID controller or GPU card for enhanced functionality.

  • Dual high-efficiency PSUs for maximum uptime and fault tolerance.

SKU: RS3-462-xx-Ax Series Category:

Description

Recording Server, Playback Server, Or VMS Management Server.
SVS Series 50 – 500 Cameras For Video Surveillance Systems.
Fibrenetix SVS Series of purpose-built video streaming servers offer exceptional storage capacity combined with high-performance I/O controllers, optimized for video streaming.

In the history of the surveillance industry, there has never been more focus on Quality, Reliability, and Cost Efficiency when selecting products for surveillance projects. The Fibrenetix Storage Video Server (RS2, RS3, and RS9 Series) has been designed to meet these ever-growing needs.

SVS RS3 – 1U Form Factor

The RS3 is Fibrenetix’s smallest SVS, a compact 1U server available in multiple configurations to meet specific user requirements. It can serve as a Management Server for large enterprise surveillance applications. At the same time, it can also be configured as a 100+ camera appliance, pre-installed with enterprise-class VMS, supporting over 100 cameras per server. With one or more appliances, the SVS works in failover mode, ensuring high availability and redundancy.

Tech Benefits

Series: RS3 SERIES
Product Code: RS3-462-xx-Ax Series
Processor: Intel® Xeon® CPU E3-1200 v6
Number of CPUs: 1
Maximum Core per CPU: 4
Memory (Min|Max): 8GB – 64GB
OS Storage (internal 2.5”): 2x 240GB SSD
Storage Bays: 4x Hot-swap 3.5” HDD Bays
Max. HDD Capacity Supported: 18TB
Maximum Raw Storage Capacity: 72TB
Max Capacity – Per IP SAN Controller: 9.2PB
Hardware RAID Levels: 0, 1, 3, 5, 6
Optional 10GBps Support: Yes
Network: 4 + 1 Mgmt
Graphics (Standard): Aspeed AST2400 32MB VRAM
USB Ports: 4x USB 3.0 – 2x USB 2.0
Video Ports: 2x VGA ports
Hot-swap Components: HDDs, PSUs, FANs
Operating System: Windows 10 Pro or Windows Storage Server 2016
Power Supply: 1 + 1 Redundant 450W 80PLUS Gold
Voltage: 100-127/200-240Vac, 8A/4A, 47-63Hz, Class 1
Dimensions (D x W x H): 615 x 444 x 44 mm (1U)
Net Weight: 8.98 Kg
Operation Temperature: 10℃ ~ 35℃
Warranty Period: 3 Years

RS3 Benefits

  • Milestone Verified through System Builder Program
  • Versatile Storage Capability
  • Optimized thermal design for heat sink and heat pipe
  • Best-in-class power efficiency and stability
  • High Networking Connection
