Description

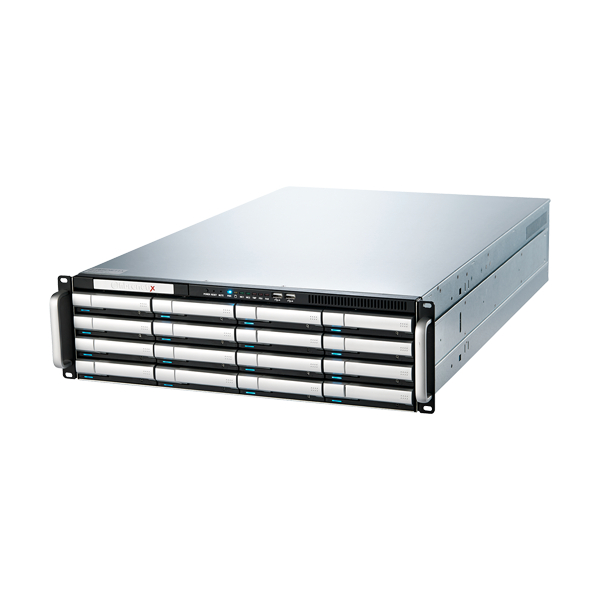

Storage E-Series — Real enterprise-class storage with high availability video server for large data-center and CCTV solutions. Fibrenetix E8-Series offers highly scalable storage, specifically designed and developed to meet the demanding needs of medium-range to high-end surveillance applications. Based around Fibrenetix high-performance video streaming chip technology, it offers at least 30% more performance than any other product in the market and at least 30% more cameras per storage controller. With dual 10Gbit iSCSI, E8-Series supports hundreds of video streams and massive storage capacity with long data retention periods and the smallest possible footprint. Each E8-Series can service hundreds of megapixel cameras, with a storage capacity of up to 8 Petabytes per iSCSI controller.
Scalable Technology: Additional E8 systems can be added to the storage network, offering scalability up to hundreds of Petabytes to meet the requirements for Homeland Security, Airports and City surveillance installations.
E88 High Availability: The 16-bay E88-Series comes with a dual controller option enabling a fully redundant mode. All connection points and JBOD controllers have dual controller support. Combined with hot-swap power supplies, fans and hard disk drives, the E88 systems offer real enterprise-class high availability. E8-Series is also available with dual 8/16/32 Gbit Fibre Channel host connection.
Tech Specs:
E-Series 3U RAID Controller: Dual Core PPC476 1.2GHz – Dedicated I/O Processor
RAID Design: Cableless Intelligent Backplane Integration
Memory (Min|Max): 4GB DDR4-800 (up to 8GB)
Storage Bays: 16x Hot-swap
Max. HDD Capacity Supported: 18TB
Maximum Raw Storage Capacity: 288TB
Max Capacity – Per IP SAN Controller: 9.2PB
Hardware RAID Levels: 0, 1, 0+1, 3, 5, 6, 30, 50, 60
Host Bus Interface: 10Gbit/s via SFP+ or 8Gbit/s & 16Gbit/s Fibre Channel
Disk Bus Interface: 6Gbit/s SATA & 12Gbit/s SAS
Disk Bus Channels: 16 Independent Channels
Host Requirement: Host Independent and Transparent
Management: RS232, Web-browser and SNMP
Hot-swap Components: HDDs, PSUs and Fan Modules
Operating System: Not Applicable (Hardware)
Power Supply: 2x400W
Voltage: 100–127 Vac, 200–240 Vac, 50/60Hz auto-sensing
Dimensions (D × W × H): 520 × 440 × 135 mm (3U)
Net Weight: 25.0 kg
Operating Temperature: 10℃ ~ 35℃
Certification: BSMI, CE, RCM, FCC (Class A)
Warranty Period: 3 Years
BTU/hr: 1914.75
Applications: Schools, Malls, Banks, Buildings, Hospitals, Factories, Oil & Gas, Aviation, Military, Government, Enterprise class, Hotels.
