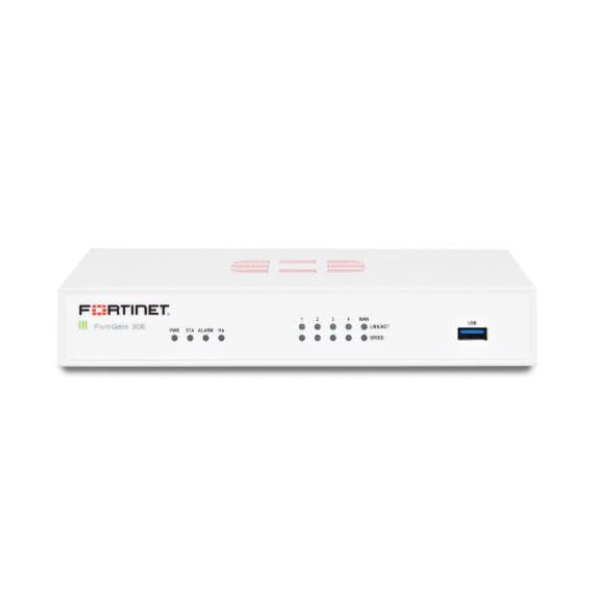

The FortiGate/FortiWiFi 30E series is a compact, cost-effective, all-in-one security solution designed for small businesses, remote offices, retail environments, and CPE deployments. Delivering Fortinet’s Connected UTM, it combines advanced threat protection, reliable performance, and simple management in a small form factor.
High-Performance Security
Powered by FortiOS 5, the 30E series integrates firewall, application control, IPS, VPN, and web filtering in a single device. FortiGuard® security services ensure automated, real-time defense against sophisticated threats. Advanced features include Sandboxing, anti-bot protection, Feature Select Options for streamlined configuration, and Contextual Visibility for enhanced reporting and management. VDOMs allow flexible network segmentation to support guest access, protect sensitive data, and meet compliance standards like PCI and HIPAA.
Features and Benefits
- Unified Threat Management: Firewall, VPN, IPS, application control, antivirus, antispam, DLP, and web filtering.
- Simple deployment with the FortiExplorer setup wizard on Android or iOS.
- Acts as a wireless access point controller and supports external 3G/4G modems for reliable WAN redundancy.
- Compact, desktop-friendly design with high MTBF ensures network reliability.
- FortiWiFi 30E includes a dual-band 802.11n access point for superior wireless coverage and PCI-DSS compliant rogue AP scanning.
- Interfaces
USB Port
- Console RJ45
- 1x GE RJ45 WAN Port
- 4x GE RJ45 Switch Ports
Specifications
- Maximum throughput: 950 Mbps
- Max concurrent connections: 900,000
- New connections/sec: 15,000
- Ports: 5 GE RJ45
- Form factor: Desktop (lightweight and reliable)
- Recommended users: 50–100
