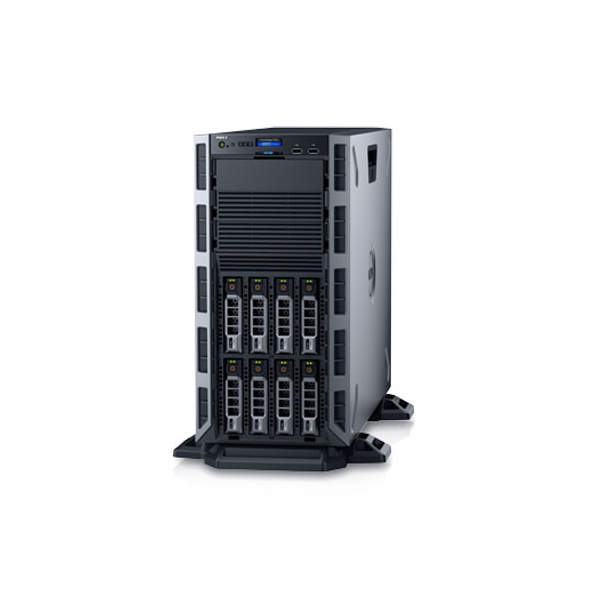

The Dell PowerEdge T330 server is designed to accelerate application performance while providing ample room for growth. Powered by the latest Intel® Xeon® E3-1200 v5 processor family and DDR4 memory, it delivers faster data transfer, up to 64GB memory support, and PCIe Gen3 I/O for twice the throughput of previous-generation systems.
Flexible Storage and Expansion
Easily scale storage with up to 8 internal 3.5″ hot-plug drives, or mix 2.5″ drives using hybrid carriers. Four PCIe 3.0 slots allow expansion of peripheral devices, while PERC9 RAID controllers deliver up to twice the IOPS performance compared to previous T320 models.
Reliable, Simplified Management
Deploy rapidly and streamline administration with Dell OpenManage solutions. Monitor system health with OpenManage Essentials, automate firmware updates with Repository Manager for up to 92% time savings, and manage servers remotely with iDRAC8 Lifecycle Controller (Express or Enterprise).
Technical Specifications
- Processors: Intel® Xeon® E3-1200 v5, Intel Pentium®, Intel Core i3®, Intel Celeron®
- Memory: 4 DIMM slots, up to 64GB DDR4 2400MT/s
- Storage: 2.5”/3.5” SATA, SAS, SSD; 8 x 3.5” drive bays
- RAID Controllers: PERC S130, H330, H730, H830
- Network: Broadcom® BCM5720, 2 x 1GbE LOM
- Power: 1 x 350W PSU, up to 2 x 495W redundant PSUs
- Chassis: Tower server, supports ReadyRails™ II for rack mounting
- I/O Ports: 8 USB (rear: 2 x USB3.0, 4 x USB2.0; front: 1 x USB2.0, 1 x USB3.0), DisplayPort, HDMI, audio, PS/2, serial
- Management: IPMI 2.0, OpenManage Essentials, Mobile, Power Center, iDRAC8 with Lifecycle Controller
Dimensions:
- Height: 430.3 mm (base) – 471.3 mm (with wheels)
- Width: 218 mm (base) – 304.5 mm (with foot)
- Depth: 542.2 mm (without bezel) – 594.82 mm (with bezel and PSU handle)
- The PowerEdge T330 combines robust performance, flexible storage, and simplified management to drive productivity and support future growth in small and medium business environments.
