Tech Specs & Customization
Processor: Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System: Canonical® Ubuntu® LTS, Citrix® XenServer®, Microsoft Windows Server® with Hyper-V, Red Hat® Enterprise Linux, SUSE® Linux Enterprise Server, VMware® ESXi

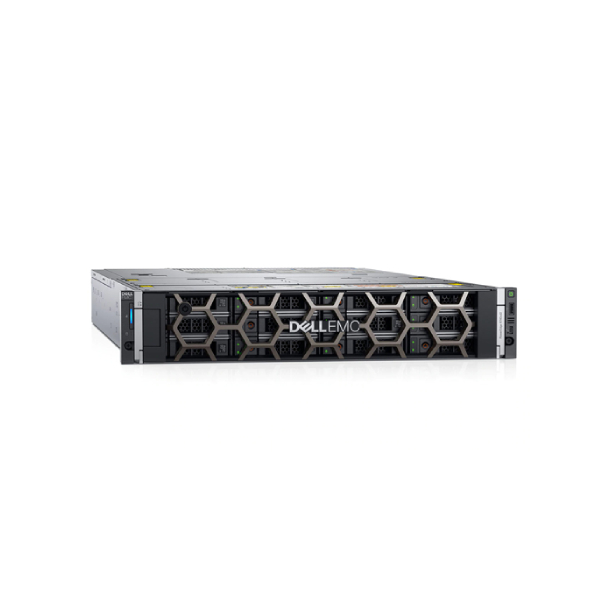

Chassis: Optional LCD or security bezel, 2U rack, max depth 715.5 mm
Drive Bays:
- Front: Up to 24 x 2.5” SAS/SSD/NVMe (184.32TB) or 12 x 3.5” SAS (168TB)
- Mid: Up to 4 x 3.5” drives (56TB) or 4 x 2.5” SAS/SSD/NVMe (30.72TB, NVMe max 25.6TB)
- Rear: Up to 4 x 2.5” (30.72TB) or 2 x 3.5” (28TB)
Memory: 24 DDR4 DIMM slots (RDIMM/LRDIMM) up to 2933MT/s, max 3TB; up to 12 NVDIMM, 192GB
Management & Tools: iDRAC9 with Lifecycle Controller, iDRAC Direct, iDRAC REST API, Quick Sync 2, OpenManage Enterprise, Essentials, Power Center, OpenManage Mobile, Dell EMC Repository Manager, Server Update Utility, iDRAC Service Module
Networking & I/O: Options for 4 x 1GE, 2 x 10GE + 2 x 1GE, 4 x 10GE, or 2 x 25GE; front VGA, 2 x USB 2.0, dedicated iDRAC Direct; rear VGA, serial, 2 x USB 3.0, dedicated iDRAC network port; up to 8 Gen3 slots (up to 4 x16)
Storage Controllers: Internal: PERC H330, H730P, H740P, SWRAID S140; Boot Optimized Storage: 2 x M.2 SSDs (240/480GB); External: PERC H840; 12Gbps SAS HBAs (internal/external non-RAID)
GPU/Accelerators: Up to 3 x 300W or 6 x 150W GPUs, or up to 3 double-width or 4 single-width FPGAs (available on 24 x 2.5” drive chassis)
Data Protection: TPM 1.2/2.0 optional, cryptographically signed firmware, Secure Boot, System Lockdown, Secure Erase
Ideal Workloads:
- Software-defined storage
- Big data and analytics
- Data-intensive applications
- Service provider data tiers
