Technical Specifications

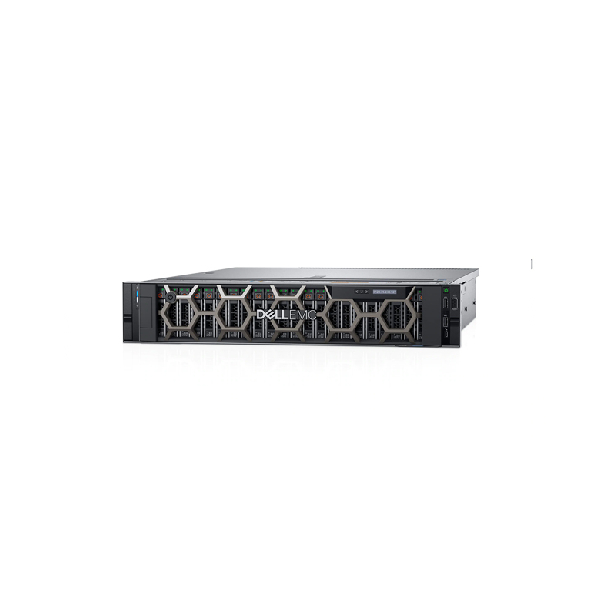

The PowerEdge R7415 is a 2U single-socket server powered by a full AMD SP3 processor, supporting up to 32 cores and 180W TDP. Designed for storage-intensive workloads, it delivers high memory and I/O flexibility with up to 16 DDR4 DIMMs and 128 PCIe lanes, along with rich storage performance supporting up to 24 NVMe SSDs and 1 TB memory capacity.
Drive Bays
- Front: Up to 24 × 2.5″ SATA/SAS/NVMe or 12 × 3.5″ SAS/SATA HDD
- Rear: Up to 2 × 3.5″ SAS/SATA HDD
Management and Software
- iDRAC9 with Lifecycle Controller, iDRAC Direct, iDRAC REST API with Redfish, Quick Sync 2 BLE
- OpenManage Enterprise, Essentials, Mobile
- Integrations with Microsoft System Center, VMware vCenter, BMC Software, Nagios Core/XI, HPE OMi
I/O and Ports
- Network Options: 2 × 1GE, 2 × 10GE, or 2 × 10GE SFP+
- Front: Video, 2 × USB 2.0, iDRAC Direct Micro-USB
- Rear: 2 × 1GE, Video, Serial, 2 × USB 3.0, iDRAC network port
- Riser Options: Up to 4 × Gen3 slots (3 ×16 lanes, 1 ×8 lanes)
Power Supplies
- Titanium 750W, Platinum 495W/750W/1600W, 1100W 240HVDC, 336-380DC 1100W (China/Japan)
Storage Controllers
- Internal: PERC H330, H730p, H740p, HBA330
- External RAID: H840
- External HBA: 12Gbps SAS HBA, PERC9/10, mini PERC x8 slot
- Boot: HW RAID 2 × M.2 + Internal USB + Dual SD
Security Features
- TPM 1.2/2.0 optional, digitally signed firmware, Silicon Root of Trust, Secure Boot, System Lockdown, Secure Erase
Dimensions & Weight
- Depth: 64.71 cm (25.48 in)
- Width: 43.4 cm (17.09 in)
- Height: 8.68 cm (3.42 in)
Operating Systems Supported
- Microsoft Windows Server 2016 & 2012 R2
- Red Hat Enterprise Linux 7.4
- VMware vSphere 2016 U1 (ESXi 6.5 U1)
Key Advantages
- Single-socket design reduces TCO while providing high compute power
- Optimized for software-defined storage, virtualization, and business analytics
- Flexible storage and memory capacity for demanding workloads
This configuration ensures cost-efficient scalability with enterprise-class performance for storage-heavy and memory-intensive applications.
