Specifications

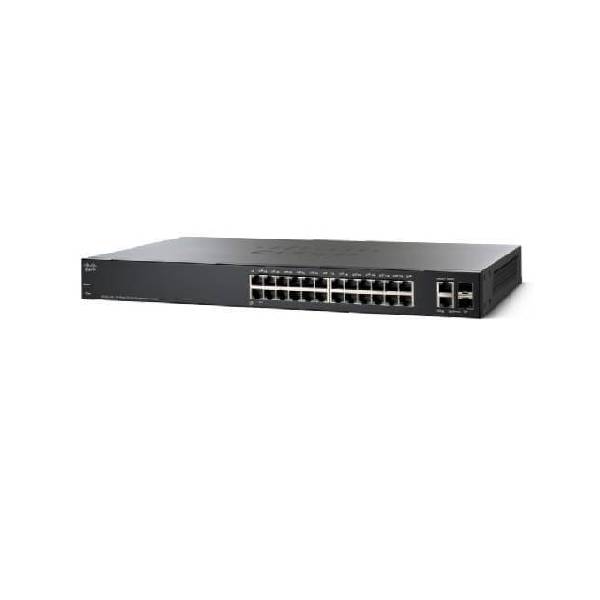

Device Overview
- Type: Managed Switch – 24 Ports
- Enclosure: Desktop or Rack-mountable (1U)
Ports & Interfaces
- Main Ports: 24 x 10/100BASE-T
- Combo Ports: 2 x Gigabit RJ-45/SFP
- Interface Types:
- 24 x RJ-45 (10/100BASE-TX)
- 2 x RJ-45 (10/100/1000BASE-T)
- 2 x SFP (Mini-GBIC)
Performance
- Switching Capacity: 8.8 Gbps
- Forwarding Rate: 6.55 Mpps (64-byte packets)
- MAC Address Table: 8192 entries
- VLAN Capacity: Up to 256 active VLANs
- Jumbo Frame Support: Up to 9 KB
Management & Protocols
- Remote Management: HTTP, HTTPS, CLI, Telnet, SSH, SNMP (v1, v2c, v3), RMON (1, 2, 3, 9)
- Security & Access:
- Authentication: SSH, RADIUS, TACACS+
- Access Control Lists (ACLs), DoS Protection, Port Mirroring
- BPDU Guard, Guest VLAN, Auto Voice VLAN, QinQ VLAN
Advanced Features
- Layer 2 Switching
- VLAN Support
- IGMP Snooping & Querier
- DHCP & BOOTP Support
- Quality of Service (QoS)
- Weighted Round Robin (WRR) Queuing
- DiffServ Support
- Storm Control (Broadcast, Multicast, Unicast)
- IPv6 & SNTP Support
- STP, RSTP, MSTP
- Cisco Discovery Protocol
- TFTP & Syslog Support
- MLD Snooping, GVRP/GARP
Compliance Standards
- Networking Standards:
IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3az (EEE), 802.3ad (LACP)
IEEE 802.1D, 802.1Q, 802.1p, 802.1x, 802.1w (RSTP), 802.1s (MSTP) - Certifications: UL 60950, FCC Part 15 Class A, CSA 22.2
Hardware Specifications
- RAM: 128 MB
- Flash Memory: 32 MB
- LED Indicators: Link Activity, Port Speed, System Status
Power & Environmental
- Power Supply: Internal
- Voltage Input: 100–240V AC, 50/60 Hz
- Cooling: Fanless
Dimensions & Weight
- Width: 17.3 in (440 mm)
- Depth: 7.9 in (201 mm)
- Height: 1.7 in (44 mm)
- Weight: 5.73 lbs (2.6 kg)
- Rack Mount Kit: Included
Environmental Tolerances
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Operating Humidity: 10% to 90% RH (non-condensing)
- Storage Humidity: 10% to 90% RH (non-condensing)
Localization
- Supported Languages: English, Simplified Chinese
