Product Highlights
- Designed for outdoor and industrial indoor environments
- Dual-radio 2×2:2 802.11ac with up to 1.3 Gbps aggregate data rate
- Dedicated third radio for 24/7 WIPS/WIDS and spectrum analysis
- Integrated Bluetooth Low Energy (BLE) for beaconing and scanning
- Enterprise-grade security with guest access support
- Intelligent, application-aware traffic shaping
- Plug-and-play, self-configuring deployment
- Optional sector antennas for point-to-point link formation
Technical Specifications
Radios
- 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n/ac client access radios
- Dedicated 2.4/5 GHz radio for WIDS/WIPS, spectrum analysis, and location analytics
- BLE radio (2.4 GHz) supporting scanning and beaconing
- Simultaneous operation of all four radios
- Supported bands (region-dependent):
- 2.412–2.484 GHz
- 5.150–5.250 GHz (UNII-1)
- 5.250–5.350 GHz (UNII-2)
- 5.470–5.600, 5.660–5.725 GHz (UNII-2e)
- 5.725–5.825 GHz (UNII-3)
Wi-Fi Features
- 2×2 MIMO with two spatial streams
- Supports SU-MIMO and MU-MIMO
- Maximal Ratio Combining (MRC), beamforming
- Channel widths: 20/40 MHz (2.4 GHz), 20/40/80 MHz (5 GHz)
- Up to 256-QAM modulation on both bands
- Packet aggregation for improved throughput
Power
- PoE: 37–57V (802.3af compatible)
- Max power consumption: 11W
- PoE injector sold separately
Interfaces
- 1× 10/100/1000BASE-T Ethernet (RJ45)
- 4× N-type female connectors for external antennas
Mounting & Physical Security

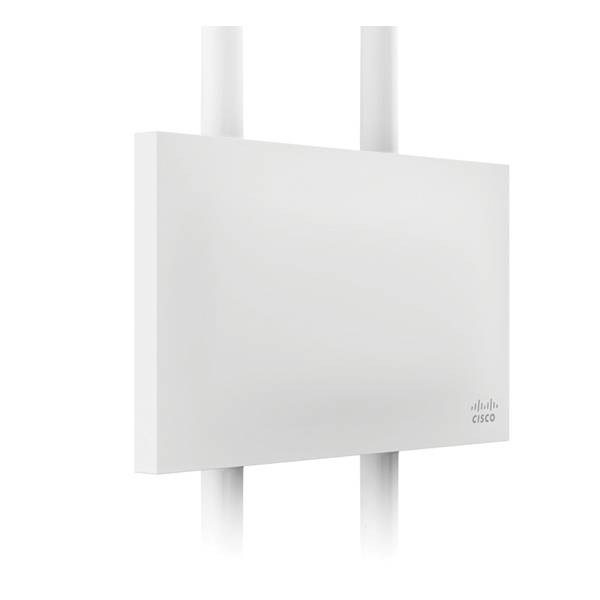

- Mountable on walls and vertical poles
- Mounting kit and security screw included
Environmental
- Operating temp: -40°F to 131°F (-40°C to 55°C)
- Humidity: 5% to 95% (non-condensing)
- IP67 rated for rugged environments
Physical Dimensions
- Size: 10″ × 6.2″ × 2.6″ (256 mm × 158 mm × 65 mm)
- Weight: 2.4 lbs (1.09 kg)
- Security Features
- Integrated Layer 7 firewall with mobile device policies
- Real-time WIDS/WIPS with automatic rogue AP containment (Air Marshal)
- Guest access with VLAN tagging (802.1Q), device isolation, and VPN tunneling
- Compliance and encryption:
- PCI reporting
- WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
- EAP: TLS, TTLS, MSCHAPv2, SIM
- TKIP, AES encryption
- Supports Enterprise Mobility Management (EMM)
Quality of Service (QoS)
- WMM with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
Mobility
- Supports PMK, OKC, and 802.11r for fast Layer 2 roaming
- Distributed or centralized Layer 3 roaming
LED Indicator
- Single LED for power, boot, and firmware upgrade status
Regulatory Compliance
- RoHS compliant
- For country-specific regulatory info, contact Meraki sales
