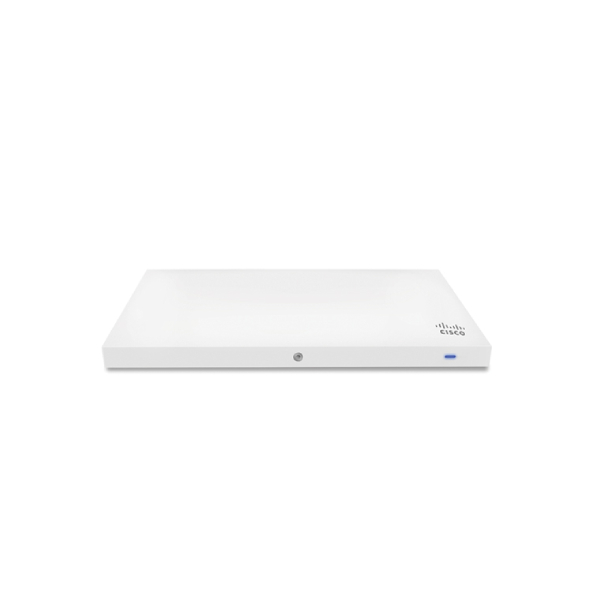

The Cisco Meraki MR33 is a powerful, cloud-managed wireless access point designed to deliver high-performance networking in modern, high-density environments like offices, retail stores, schools, and hospitality spaces. Featuring 2×2 MU-MIMO and 802.11ac Wave 2 support, the MR33 delivers a total dual-band aggregate data rate of up to 1.3 Gbps 866Mbps on 5 GHz and 400Mbps on 2.4 GHz ensuring reliable and fast Wi-Fi connectivity.
A dedicated third radio offers continuous scanning for real-time wireless intrusion detection (WIDS/WIPS), RF spectrum analysis, and Wi-Fi location analytics all without impacting client traffic or performance. In addition, the MR33 includes a built-in Bluetooth Low Energy (BLE) radio for BLE beaconing and scanning, enabling proximity-based applications and enhanced device visibility.
Cloud-based RF optimization automates performance tuning by adjusting channel selection, transmit power, and connection settings in real-time. With Meraki’s Air Marshal, the MR33 provides 24/7 wireless threat monitoring and automatic rogue AP containment to ensure enterprise-level security.
Key Features:
- Dual-band radios (2.4 GHz + 5 GHz) with 2×2 MU-MIMO
- Up to 1.3 Gbps total throughput (866 Mbps @ 5 GHz + 400 Mbps @ 2.4 GHz)
- Third radio for 24/7 WIDS/WIPS, spectrum analysis, and location analytics
- Integrated BLE for beaconing and scanning
- Application-aware traffic shaping and optimized performance for voice/video
- Enterprise-grade security with Layer 7 firewall and device isolation
- Self-configuring plug-and-play deployment via Meraki cloud
- Sleek, low-profile design with flexible wall/ceiling/desktop mounting
Specifications Overview:
Radios:
- Dual-band 802.11ac/n/a (5 GHz) and 802.11n/b/g (2.4 GHz)
- Dedicated third radio for WIDS/WIPS and RF monitoring
- BLE radio for beaconing and scanning
Performance:
- 2×2 MU-MIMO with two spatial streams
- Channel support: 20/40 MHz (2.4 GHz), 20/40/80 MHz (5 GHz)
- Up to 256 QAM modulation, beamforming, and MRC
Security:
- Layer 7 firewall, guest access with isolation, VPN tunneling
- Rogue AP detection and containment with Air Marshal
- WPA2-Enterprise, WPA3, 802.1X, EAP, and PCI compliance
Power & Mounting:
- Power: 802.3af PoE or 12V DC input, max consumption 15W
- Mounting: supports wall, ceiling, desktop (hardware included)
- Bubble level, security screws, and concealed mount plate included
Interfaces:
- 1x Gigabit Ethernet port (RJ45)
- 1x DC power port
Environmental:
- Operating temp: 0°C to 40°C (32°F to 104°F)
- Humidity: 5–95% non-condensing
Physical:
- Dimensions: 215mm x 110mm x 32mm
- Integrated antennas: 3.8 dBi @ 2.4 GHz, 3.9 dBi @ 5 GHz
- Physical security: Kensington lock support, tamper-resistant design
Quality of Service:
- Application-aware traffic shaping
- Fast roaming: PMK, OKC, 802.11r
- Layer 7 classification and shaping for optimal app performance
