Description

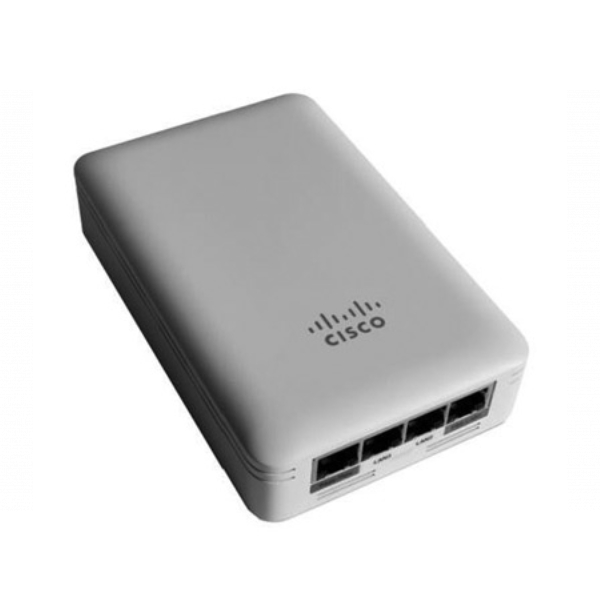

CBW145AC 802.11ac 2×2 Wave 2 Access Point Wall Plate
The Cisco Business 145AC Access Point delivers a high-performance, secure, and reliable wireless experience for small businesses and Managed Service Providers (MSPs). By supporting 802.11ac Wave 2, it provides a 5-GHz data rate of up to 867 Mbps and a dual-radio aggregate data rate of up to 1 Gbps, exceeding 802.11n standards and meeting modern wireless performance expectations.
Features and Benefits
- Supports 802.11ac Wave 2 for enhanced wireless performance and capacity.
- Highly secure and reliable connections for a robust mobile end-user experience.
- Delivers a total dual-radio aggregate data rate of up to 1 Gbps.
- Ideal for small businesses and MSPs looking for scalable, high-performance wireless connectivity.
Data Rates Supported
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (2.4 GHz): 6.5 to 300 Mbps (MCS0–MCS15, HT 20/40)
- 802.11ac (5 GHz): 6.5 to 867 Mbps (MCS0–MCS9)
Integrated Antennas
- 2.4 GHz, gain 2 dBi
- 5 GHz, gain 3 dBi
Interfaces
- 1× Gigabit Ethernet uplink (10/100/1000BASE-T autosensing), PoE
- 3× Gigabit Ethernet local ports (10/100/1000BASE-T), including one PoE out port
- PoE out provides 802.3af (Class 0) when access point is powered by 802.3at, or no output when powered by 802.3af
- One passive pass-through port, RJ-45 (back to bottom)
