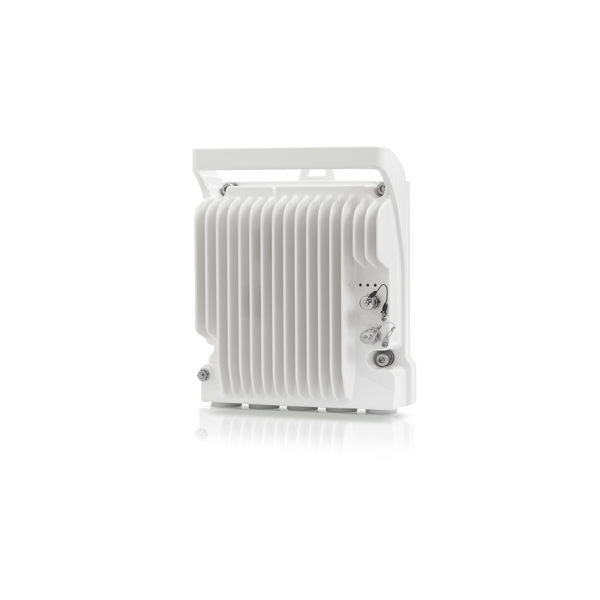

Radio Specifications
- Frequency Range: 6–38 GHz
- Configuration: 1+0, 1+1 HSB, 2+0
- Protection: 1+1 HSB
- Modulation: QPSK to 2048 QAM with ACM
- Features: Advanced Frequency Reuse (AFR)
Technical Details
- Dimensions: 230 mm (H) × 233 mm (W) × 98 mm (D); Weight: 6.0 kg
- Pole Mount Range: 8.89 cm – 11.43 cm
- Environmental: -33 °C to +55 °C (extended: -45 °C to +60 °C)
- Power Input: Standard -48 VDC; IDU range -40 to -60 VDC
