Description
PHYSICAL SPECIFICATION

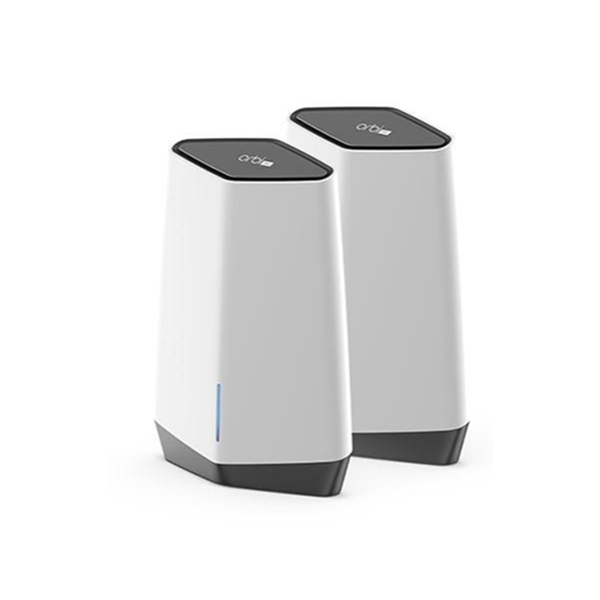

Orbi Pro WiFi 6 Router (SXR80): Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06 lb
Orbi Pro WiFi 6 Satellite (SXR80): Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06 lb each
TECHNICAL SPECS
What do I need for Orbi Pro WiFi 6 to work?
1. High-speed Internet connection
2. Connect to existing modem or gateway
3. Use the local UI to set up and customize in minutes
WiFi Technology
(2,400 + 2,400 + 1,200) Mbps†, Simultaneous Tri-band WiFi
Radio 1: IEEE 802.11b/g/n/ax 2.4GHz – 256QAM support
Radio 2: IEEE 802.11a/n/ac/ax 5GHz – 1024QAM support
Radio 3: IEEE 802.11a/n/ac/ax 5GHz – 1024QAM support
Antennas: Eight (8) high-performance antennas with high-power amplifiers
MU-MIMO: OFDMA and bi-directional MU-MIMO WiFi 6 throughput. MU-MIMO capable for simultaneous data streaming on multiple devices
TWT: TWT (Target Wait Time) for longer smartphone battery life
Beamforming: Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
Link Aggregation Grouping:
Router Unit: 4x GbE ports, of which two can be formed in a LAG
Satellite Unit: 1x 2.5GbE port; 4x GbE ports, of which two can be formed in a LAG
Ports – Orbi Pro WiFi 6 Router
One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port
Two (2) Gigabit Ethernet LAN ports
Link Aggregation Mode optional
Two (2) Gigabit Ethernet LAN ports
Security
Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices)
Flexible VLAN configuration on all four SSID WiFi networks
Client isolation by default on Guest SSID and configurable on other SSIDs
WPA/WPA2/WPA3 support
Local Admin: Local Admin UI available for extensive feature setting and maintenance
Insight: Insight App – Secured Cloud for remote monitoring
Third party support: Domotz
