The Avaya IP Office phone system is a scalable collaboration solution designed for businesses ranging from 3 to 3,000 users, supporting up to 150 interconnected IP Office systems. Deployment options include virtualized IP Office software on VMware, dedicated servers, the IP500 V2 appliance, or a mix of these, offering flexibility to suit different environments.
It supports a wide range of telephony devices, including IP phones, digital and analog phones, softphones, and analog or digital cordless devices such as DECT. System administration can be handled via web-based management, a Windows client, or database backup and restore tools.

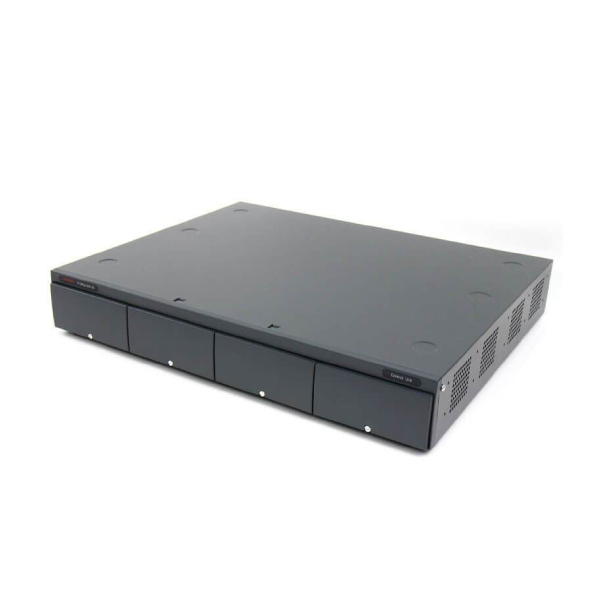

Avaya IP500 V2 Features:
- Base Card Slots: Four slots supporting a variety of cards, including digital and analog station cards, combination ATM cards, VCM modules, and unified communications modules.
- Trunk Cards: Supports IP500 ATM and PRI trunk interface cards.
- SD Card Slots: Two slots, one required for the system SD card, with an optional second SD card.
- Voicemail Channels: Up to 30 channels for Voicemail Pro or TAPI WAV sessions.
- Expansion Ports: Eight integrated ports compatible with external digital and analog modules, expandable up to 12 with additional base cards.
- LAN & Additional Ports: Two full-duplex 10/100 Mbps LAN ports, plus music-on-hold, DTE, external relay, and WAN support.
Compatibility:
- Works with a variety of base cards and external expansion modules.
- Compatible with 1400, 2400, 5400, 6400, and 9500 series digital phones (dependent on configuration and software).
- Compatible with 1600, 4600, 5600, and 9600 series IP phones (configuration/software dependent).
- IP Office 9.0+ supports the IP500 V2 control unit and Avaya Branch Gateway as a single hardware product.
The system offers a complete, flexible, and expandable telephony solution, ideal for growing businesses seeking reliable voice, messaging, and unified communications.
