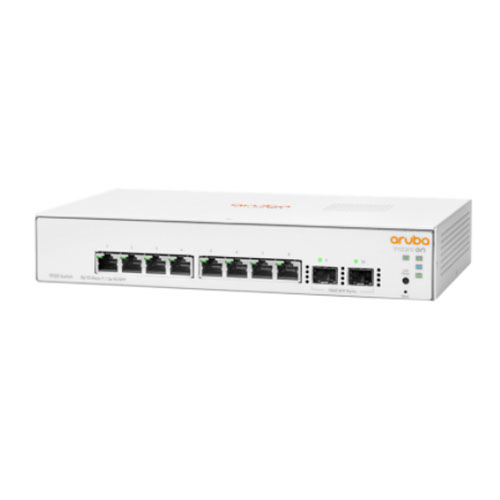

Designed specifically for small businesses, the Aruba Instant On 1930 Series offers advanced, smart-managed, fixed-configuration Gigabit switching that’s secure, easy to deploy, and cost-effective. These switches are the first in their class to offer “anywhere, anytime” cloud-based management through the Instant On mobile app or web portal, with the flexibility to manage locally via the web GUI.
This particular model features 48 Gigabit RJ-45 ports and 4 SFP 1/10GbE uplink ports, making it ideal for high-density environments that require fast, reliable connectivity.
Performance & Connectivity
- Total Ports: 48 Ă— 10/100/1000 Mbps RJ-45 Ethernet ports, 4 Ă— SFP 1/10GbE fiber uplink ports
- Switching Capacity: 176 Gbps
- Maximum Throughput: 130.95 Mpps
Power & Energy Efficiency
- Maximum Power Consumption: 36.9 W
- Idle Power: 16.8 W
- Input Voltage Range: 100–127V / 200–240V AC (auto-ranging)
- PoE Capability: Up to 370 W (model-dependent)
Hardware & System Resources
- Processor: ARM Cortex-A9 @ 800 MHz
- Memory: 512 MB SDRAM
- Flash Storage: 256 MB
- Packet Buffer: 1.5 MB
Management Options
- Aruba Instant On Cloud Portal
- Mobile App
- Local Web GUI
- SNMP Manager Support
Warranty & Support
- Limited Lifetime Warranty
- 24Ă—7 phone support for the first 90 days
- Ongoing chat support for the full duration of the warranty
Physical Specifications
Weight:
- 6.91 lb (3.13 kg)
Dimensions:
- 1.73 x 17.42 x 11.12 in (4.39 x 44.25 x 28.24 cm)
