Next-Gen Stackable Access Switching for Branch and Campus Networks

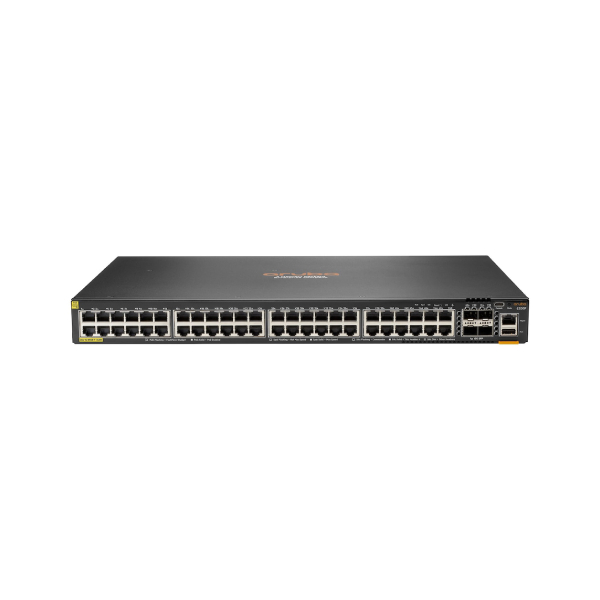

The Aruba CX 6200 Series is an enterprise-class access switch designed for performance, simplicity, and scalability. With a system switching capacity of up to 176 Gbps and throughput up to 130.9 Mpps, this stackable solution supports seamless connectivity and high-speed data access. Built for campus, branch, and SMB environments, the CX 6200 supports stack sizes of up to 8 members using integrated 10G SFP ports making it ideal for growing networks.
Flexible Model Options
Choose from a variety of models to suit your PoE and port-density requirements:
- JL724A – 24G 4SFP+: 24 Gigabit ports, 4x 1/10G SFP+ uplinks, internal 200W PSU, fan-cooled
- JL725A – 24G PoE 4SFP+ (370W): 24 Gigabit PoE ports, 4x SFP+ uplinks, 500W PSU, delivers up to 370W Class 4 PoE
- JL726A – 48G 4SFP+: 48 Gigabit ports, 4x SFP+ uplinks, internal 200W PSU
- JL727A – 48G PoE 4SFP+ (370W): 48 Gigabit PoE ports, 4x SFP+ uplinks, 500W PSU, 370W PoE support
- JL728A – 48G PoE 4SFP+ (740W): 48 Gigabit PoE+ ports with up to 30W per port, 950W Gold PSU, supports up to 740W Class 4 PoE
Powerful and Efficient PoE Support
Designed for modern edge deployments, the CX 6200 supports up to 740W of Class 4 PoE power, ideal for powering wireless access points, IP cameras, and other PoE-enabled devices. JL728A provides the highest power output, while JL725A and JL727A are suited for moderate PoE needs.
Advanced Management and Programmability
Enjoy management flexibility with multiple options: CLI, Web GUI, REST APIs, Aruba Central (cloud or on-premises), and mobile access via Bluetooth dongle. The switch also includes USB-C console, USB-A host, and OOBM ports for easy configuration and monitoring.
Rugged Design with Silent Cooling
The CX 6200 Series operates in temperatures ranging from 0°C to 45°C (derated for altitude), with humidity tolerance up to 95%. Acoustic output ranges from 32.5 to 37.1 dB, with airflow directed front/side-to-back ideal for office, retail, and equipment room deployments.
Mounting and Power
All models support horizontal mounting in standard 19” EIA racks and come with a 2-post rack kit. Operating at 100–240V AC with a frequency of 50–60 Hz, the switches draw between 1.4A and 11A depending on configuration.
Certified for Global Compliance
Aruba CX 6200 switches meet global safety and emissions standards including EN, IEC, FCC, VCCI, and CISPR. Immunity certifications cover ESD, radiated and conducted immunity, surges, and voltage dips, ensuring reliable operation in all environments.
