Enterprise-Grade Performance for Modern Networks

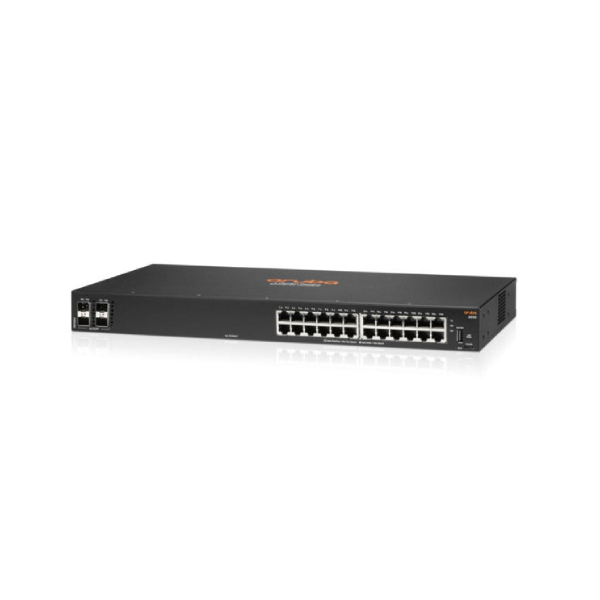

The Aruba CX 6100 Series is designed to deliver reliable and secure wired access for branch offices, mid-sized businesses, and SMBs. With a switching capacity of up to 176 Gbps and throughput reaching 98.6 Mpps, these switches ensure fast and efficient data handling for today’s demanding network environments.
Versatile Model Lineup
Choose from a range of models to match your deployment needs:
- JL675A – 48G PoE Switch (370W): 48 Gigabit ports, 4 SFP+ uplinks, internal power supply, supports up to 370W Class 4 PoE, 5.02 kg
- JL676A – 48G Non-PoE Switch: Same port setup as JL675A but without PoE support, compact size, 3.42 kg
- JL677A – 24G PoE Switch (370W): 24 Gigabit ports, 4 SFP+ uplinks, supports up to 370W PoE, ideal for mid-sized deployments
- JL678A – 24G Non-PoE Switch: Non-PoE variant of JL677A with compact dimensions, 2.62 kg
- JL679A – 12G PoE Fanless Switch (139W): Fanless, quiet operation, 12 Gigabit ports, 2 RJ-45 + 2 SFP+ uplinks, 139W PoE, perfect for space-constrained, noise-sensitive environments
Smart Power & PoE Flexibility
Built-in Class 4 PoE support provides up to 370W power (JL675A, JL677A) or 139W (JL679A), enabling seamless connectivity for access points, VoIP phones, and IoT devices without the need for additional power sources.
Connectivity & Management Made Simple
Manage your switches via a USB-C console, USB-A host port, Web GUI, CLI, or REST APIs. Designed for easy installation, all models include a 2-post rack kit and support horizontal mounting on 19″ EIA racks.
Rugged and Reliable Operation
These switches operate at temperatures from 0°C to 45°C and altitudes up to 10,000 ft. Storage conditions range from -40°C to 70°C, with humidity tolerance up to 95%. The JL679A fanless model ensures silent performance with side-to-side airflow.
Low Noise & Energy Efficiency
Sound levels range from 0 to 4.3 Bel, and bystander noise is as low as 0 dB, ensuring quiet deployments in open offices or classrooms. Electrical specs include 100–240V AC input, 50–60 Hz frequency, and a max current draw between 0.5A and 4.91A.
Certified for Safety and Compliance
The Aruba CX 6100 Series complies with international safety and emissions standards including EN, IEC, FCC, VCCI, and CISPR. It also meets advanced immunity and environmental certifications (IEC 61000 series), ensuring robust protection against power surges, ESD, voltage dips, and other disturbances.
