Description

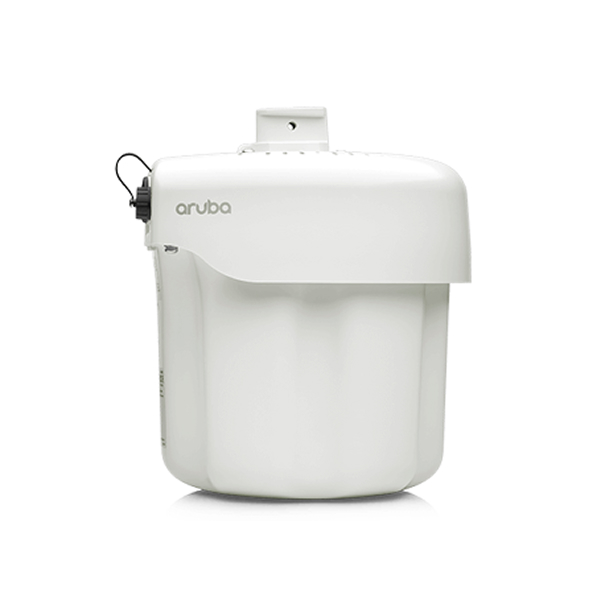

- Overview: Weatherproof and temperature hardened, Aruba 370 series access points deliver 802.11ac Wave 2 Gigabit Wi-Fi to outdoor and environmentally challenging locations. Delivers 4×4:4SS MU-MIMO capability, Aruba’s advanced ClientMatch and an integrated Bluetooth beacon to enable Aruba location services.
- Unique Benefits:
- Dual Radio 802.11ac access point: Supports up to 1,733 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band.
- Built-in BLE radio: Enables location-based services using Aruba Beacons.
- Advanced Cellular Coexistence: Minimizes interference from cellular networks and small cells.
- Industrial design: Sealed connectors prevent dust and moisture ingress.
- QoS for UC apps: Supports Skype for Business with voice, video, chat, and sharing.
- AirMatch RF Management: Optimizes channel width, selection, and transmit power.
- Spectrum analysis: Remotely scans 2.4/5 GHz bands for RF interference.
- Wireless mesh: Enables connectivity where Ethernet is unavailable.
- AppRF: Deep packet inspection for visibility and control of thousands of enterprise apps.
- Aruba Secure Core: TPM for secure boot, integrated WIPS, IP reputation-based security, IPsec VPN.
- Choose Your Operating Mode:
- Controller mode: Centralized config and traffic control via Mobility Controllers.
- Instant mode: One AP configures the others automatically.
- Other Modes: RAP, Air Monitor, Spectrum Analyzer, Secure Mesh, Hybrid AP.
- Aruba Activate: Automates provisioning and updates across sites.
- AP-370 Series Specifications:
- AP-374: External antennas, 4×4 MU-MIMO @ 5GHz (1,733 Mbps), 2×2 MIMO @ 2.4GHz (300 Mbps).
- AP-375: Internal Omni Antennas (4.6/4.0 dBi), 4×4 MU-MIMO @ 5GHz, 2×2 MIMO @ 2.4GHz.
- AP-377: Internal Directional Antennas (6.3/6.4 dBi), 4×4 MU-MIMO @ 5GHz, 2×2 MIMO @ 2.4GHz.
- Wi-Fi Radio Specifications:
- AP Type: Outdoor hardened, dual radio.
- Software Configurable Radios: 5 GHz (Radio 0), 2.4 GHz (Radio 1).
- 5 GHz: 4SS MU-MIMO, up to 1,733 Mbps.
- 2.4 GHz: 2SS SU-MIMO, up to 300 Mbps.
- Clients per Radio: Up to 256 clients, 16 BSSIDs.
- Supported Frequencies: 2.4 GHz and 5 GHz ranges with DFS.
- Technologies: DSSS, OFDM.
- Modulations: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM.
- Transmit Power: Configurable, max 25 dBm @ 2.4 GHz, 28 dBm @ 5 GHz.
- EIRP: AP-374 (25/28 dBm + Antenna), AP-375 (29/35.6 dBm), AP-377 (31.4/36 dBm).
- Features: ACC, MRC, CDD, STBC, LDPC, TxBF, SGI, Packet Aggregation.
- Data Rates: 802.11b/a/g/n/ac from 1 Mbps up to 1,733 Mbps.
- Channel Support: HT 20/40, VHT 20/40/80/160, A-MPDU, A-MSDU.
