Description

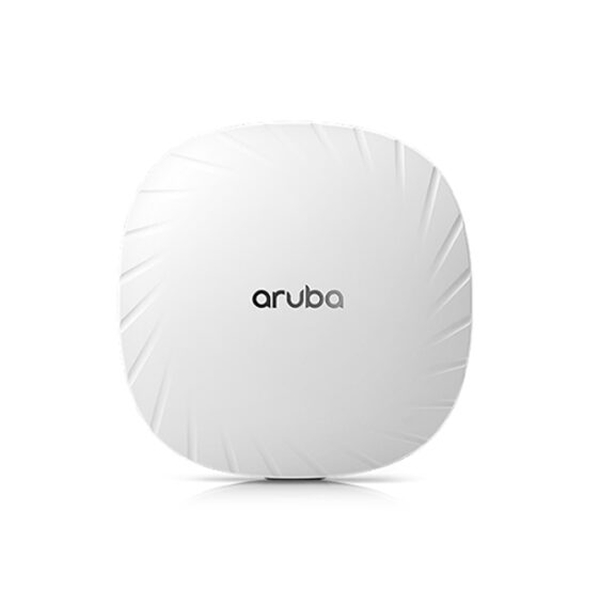

The entry-level Aruba 300 Series Wave 2 access points deliver high performance and superb user experience for medium density environments.
These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.
The 300 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities.
Is this the right product for your business?
UNIQUE BENEFITS
- Dual Radio 802.11ac access point with Multi-User MIMO
- Supports up to 1,300 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band
- Built-in Bluetooth Low-Energy (BLE) radio
- Location-based services with BLE-enabled mobile devices
- Advanced Cellular Coexistence (ACC) minimizes interference from 3G/4G
- Quality of Service (QoS) for unified communication apps
RF Management
- Adaptive Radio Management (ARM) for optimal channel and power settings
- Spectrum analysis, WIPS, VPN tunnels, and wireless mesh supported
Intelligent App Visibility & Control
- AppRF with deep packet inspection for over 2,500 enterprise apps
Security
- Integrated wireless intrusion protection
- IP reputation and threat detection services
- Trusted Platform Module (TPM) for secure credentials
Intelligent Power Monitoring (IPM)
- Reports power consumption and auto-disables features if needed
- USB port is first to turn off when using 802.3af PoE if needed
CHOOSE YOUR OPERATING MODE
- Controller-managed mode: Centralized management and security
- Aruba Instant mode: Quick configuration with one AP distributing settings
- Remote AP (RAP): Ideal for branch setups
- Air monitor (AM): For WIDS and rogue AP detection
- Spectrum analyzer: For detecting RF interference
- Secure mesh: Wireless mesh without Ethernet
SPECIFICATIONS
- AP-304 / IAP-304: External antennas, 5GHz 3×3 MIMO + 2.4GHz 2×2 MIMO
- AP-305 / IAP-305: Integrated antennas, 5GHz 3×3 MIMO + 2.4GHz 2×2 MIMO
WI-FI RADIO SPECIFICATIONS
- Indoor dual radio: 5GHz (3×3 MIMO) & 2.4GHz (2×2 MIMO)
- Up to 256 clients per radio, 16 BSSIDs per radio
- Dynamic Frequency Selection (DFS)
- Advanced RF features: MRC, STBC, LDPC, Tx Beamforming, etc.
Supported Data Rates (Mbps)
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6 to 54
- 802.11n/ac: Up to 1,300 Mbps
