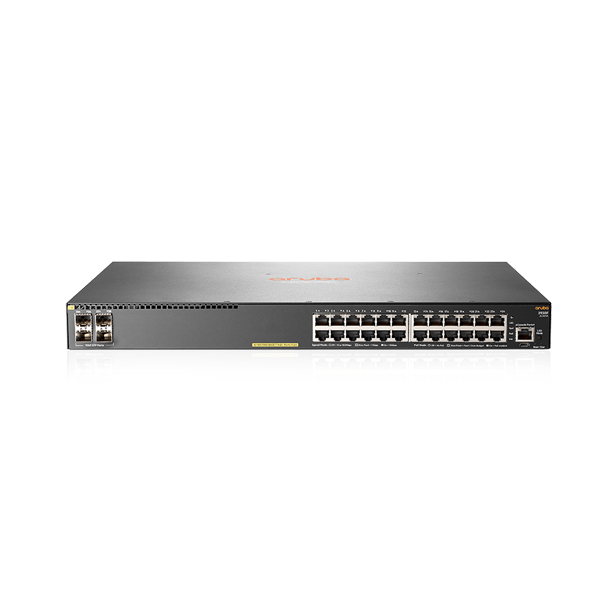

This Aruba Layer 3 switch features 24 RJ-45 autosensing 10/100/1000 PoE+ ports, supporting IEEE 802.3 standards including 10BASE-T, 100BASE-TX, 1000BASE-T, and PoE+ (802.3at). It also includes 4 SFP ports for uplink connectivity and a dual-personality (RJ-45 or USB micro-B) serial console port for flexible management access.
Hardware & Performance
The switch is powered by a Dual Core ARM Cortex A9 processor running at 1016 MHz, supported by 1 GB DDR3 SDRAM and 4 GB eMMC storage. It includes a 12.38 MB packet buffer (4.5 MB Ingress / 7.785 MB Egress) for efficient data handling across traffic loads.
Features & Benefits
- Advanced Layer 3 Switching: Supports VSF stacking, static routing, RIP, and access OSPF for robust routing capabilities.
- Dynamic Segmentation: Enhances network segmentation and policy enforcement at the switch level.
- Integrated Security & Management: Compatible with Aruba ClearPass Policy Manager, Aruba AirWave, and Aruba Central for streamlined administration and security.
- High-Power PoE+ Support: Delivers up to 740 W PoE+ to power access points, cameras, and other devices.
- Software-Defined Networking Ready: Includes support for REST APIs and OpenFlow for seamless SDN integration.
- Easy Deployment: Zero Touch Provisioning (ZTP) enables simplified installation and configuration.
